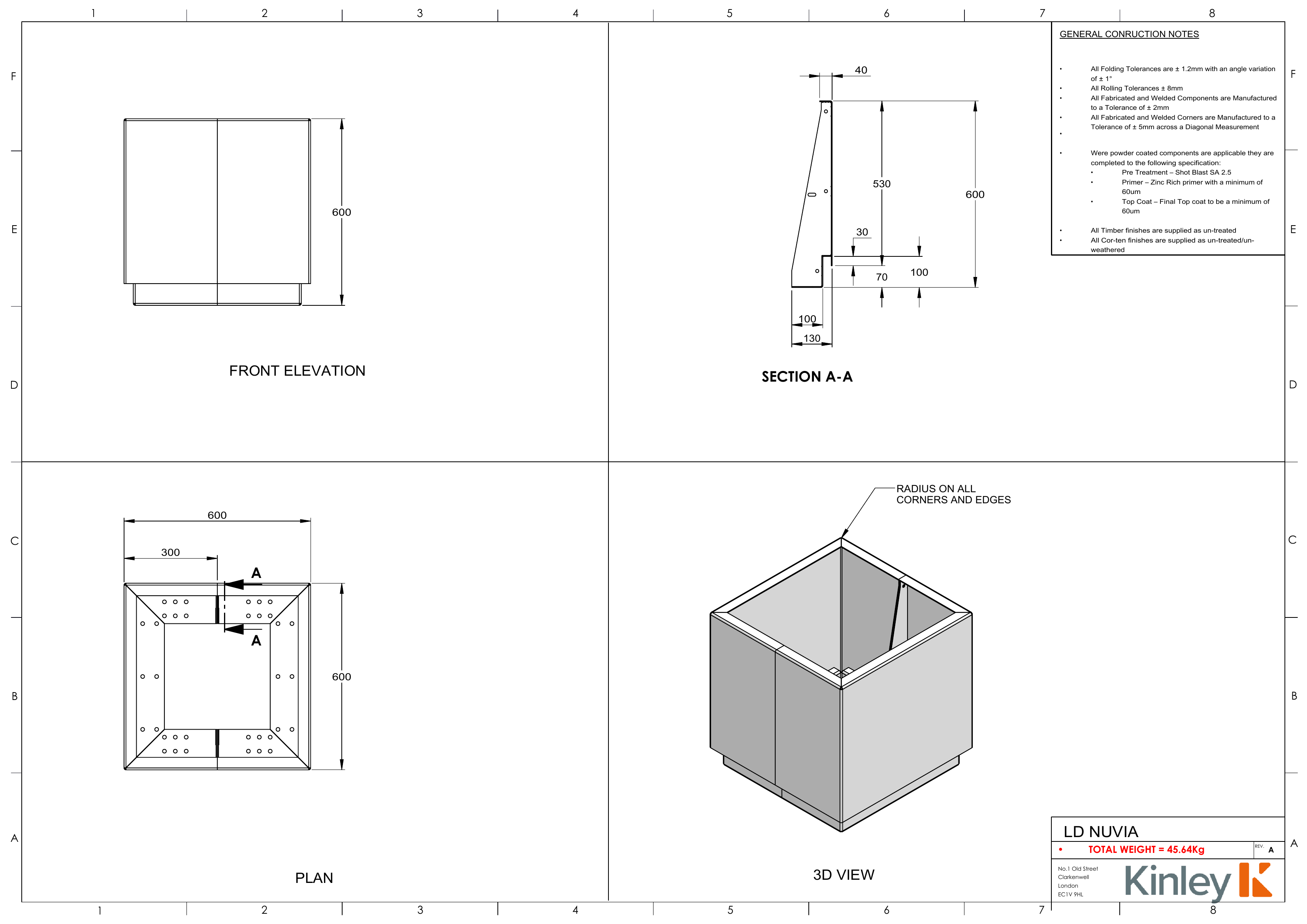

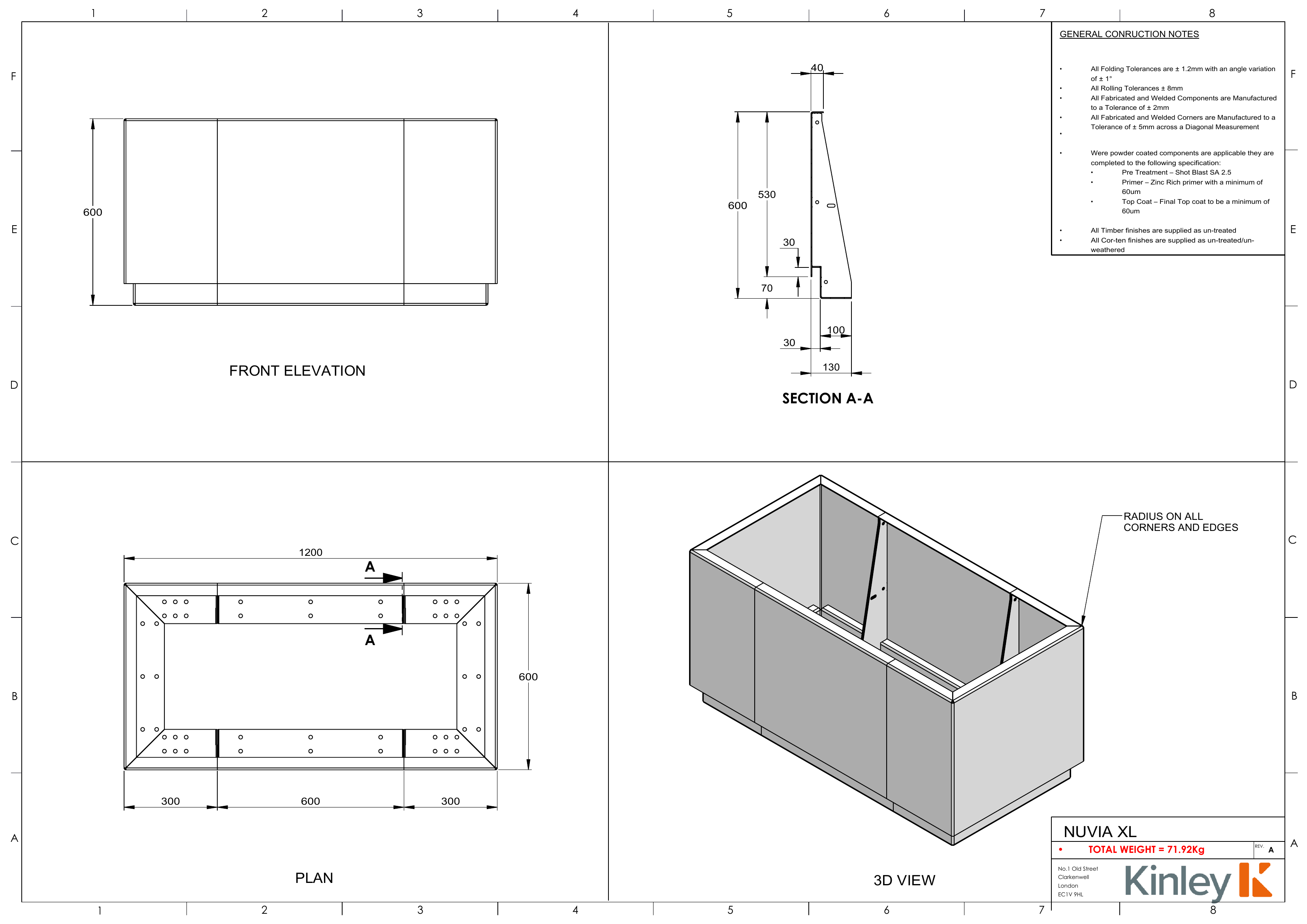

Technical Drawings
No items found.

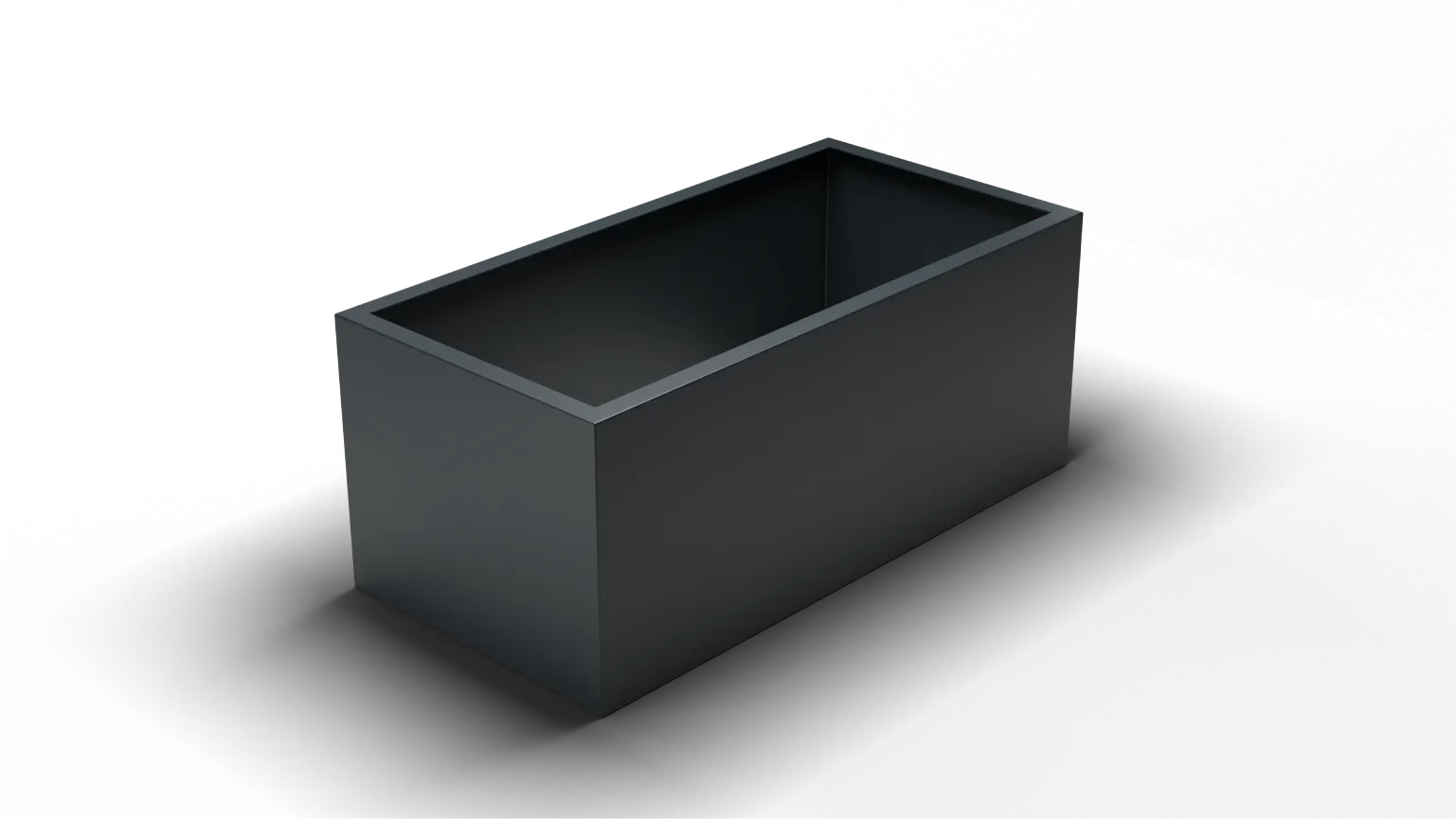

The architectural foundation of the Kinley planter range — square and rectangular steel planters in a clean 90° geometry. Available in two footprints and seven heights, Nuvia is the workhorse specifiers reach for when the design calls for restraint, repetition, and confident proportion.
Nuvia is purposefully understated: clean 90° corners, flush surfaces, concealed fixings. The 600mm and 1200mm footprints work in series, in pairs, or singly — and pair effortlessly with Velin, Rava, and Kairo where the scheme demands mixed geometries. End cap variants extend the system for terminations.
Square (600mm x 600mm) and rectangular (1200mm x 600mm) footprints. Heights from 300mm to 1200mm. 3mm folded steel in CorTen, RAL 7016, or custom powder-coated finishes. Delivered flat-packed with concealed corner brackets, gasket tape, and M10 anchor bolts. UK-manufactured to BS EN 9001.
Nuvia End Caps close off a planter run with a deliberate terminus. The standard R cap matches the standard planter geometry; the Tall L variant introduces additional height at the run’s end, creating an asymmetric profile useful for visual hierarchy or sightline management.
Standard R end cap and Tall L end cap. 3mm steel construction in CorTen, RAL 7016, or custom powder-coated finishes. Compatible with the standard Nuvia heights. Designed and manufactured in the UK to BS EN 9001.

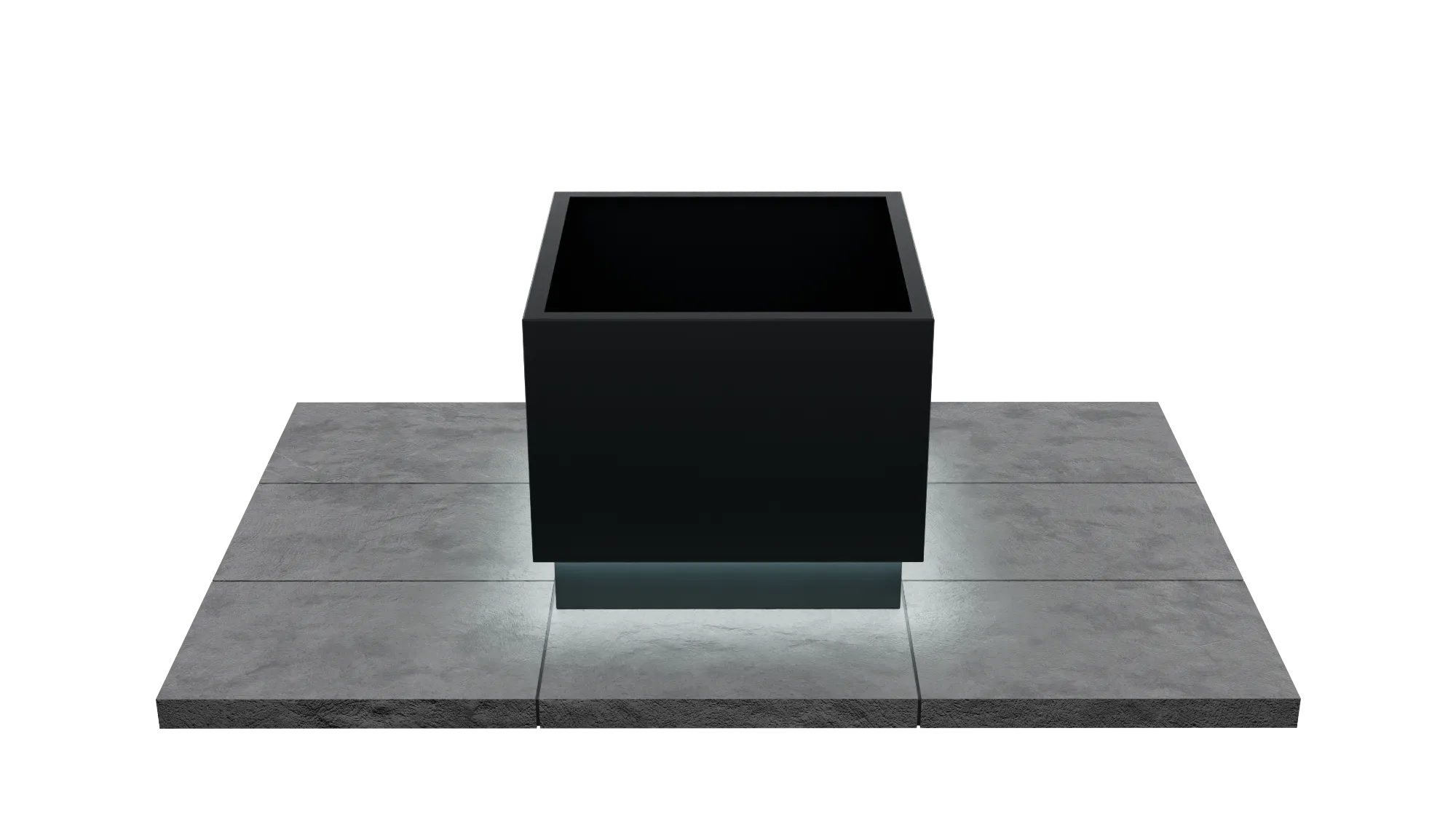

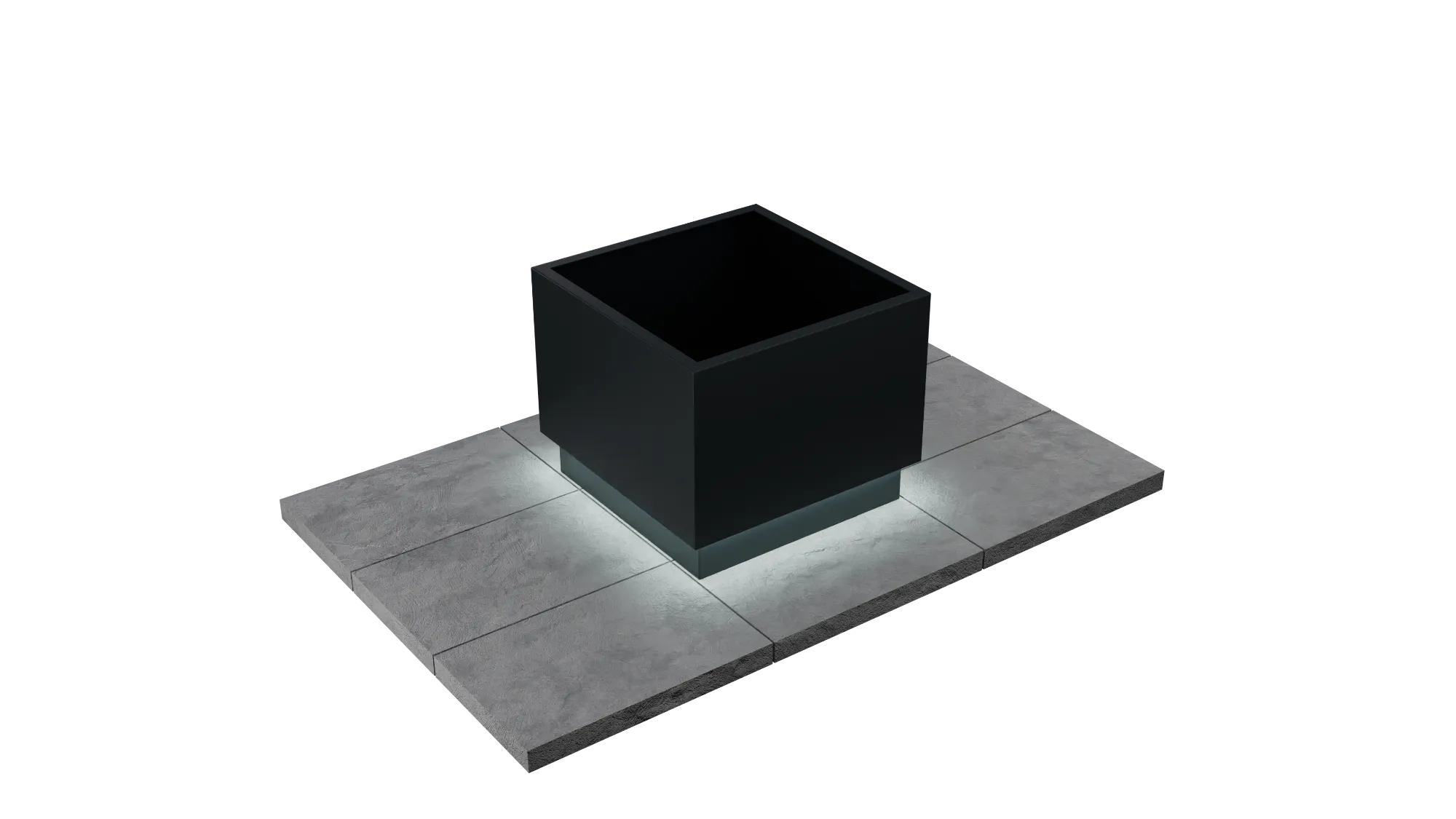

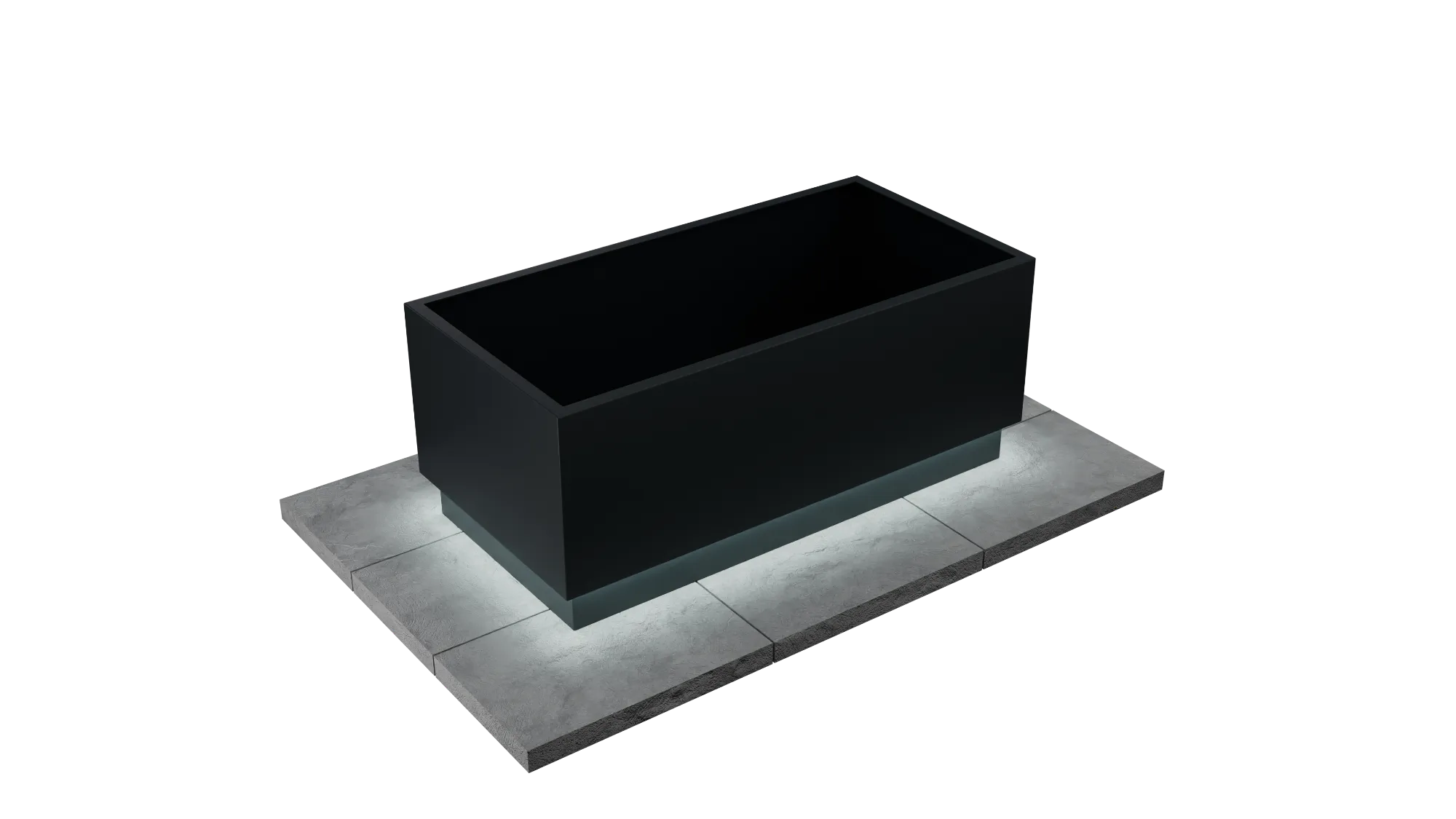

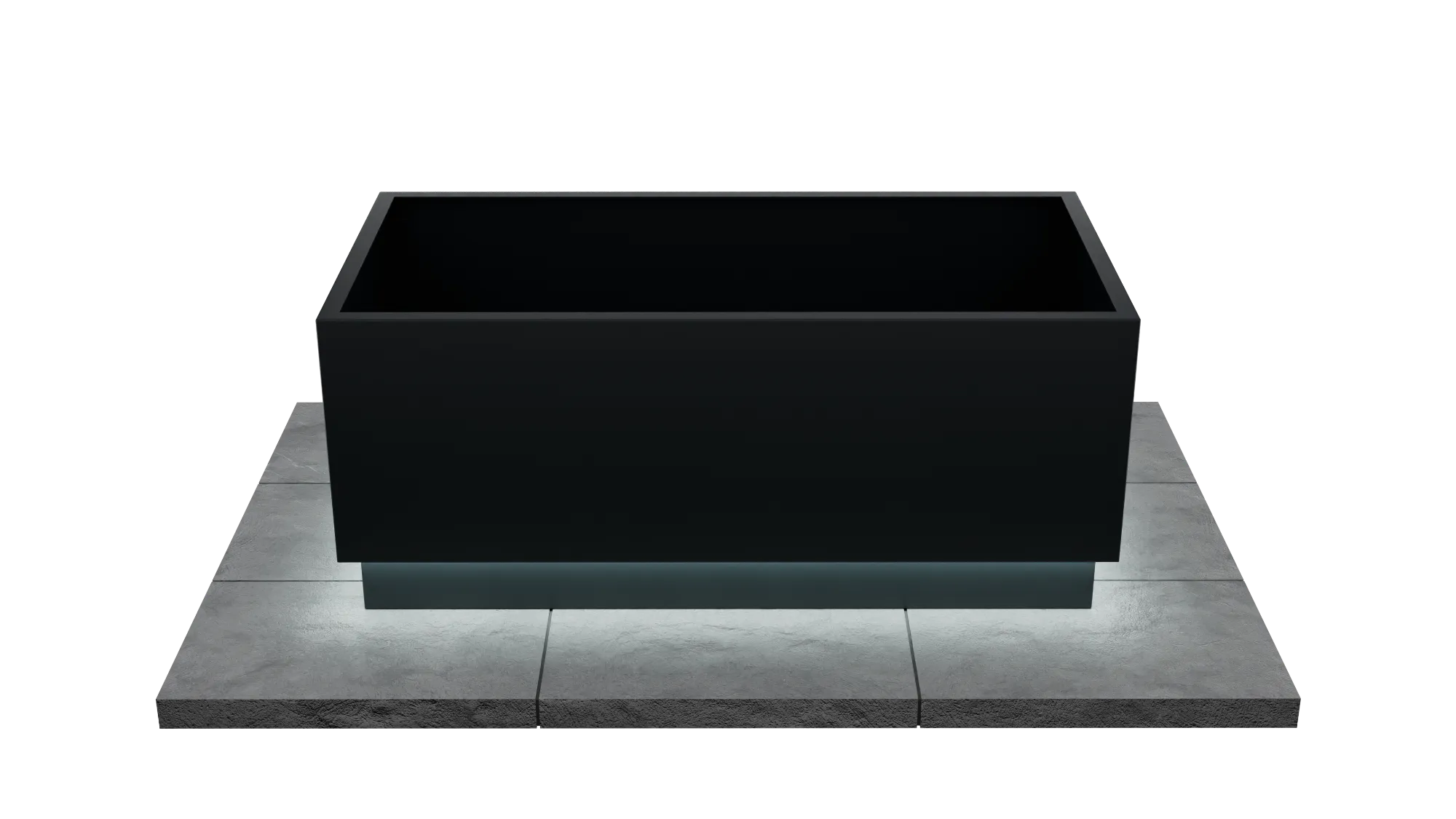

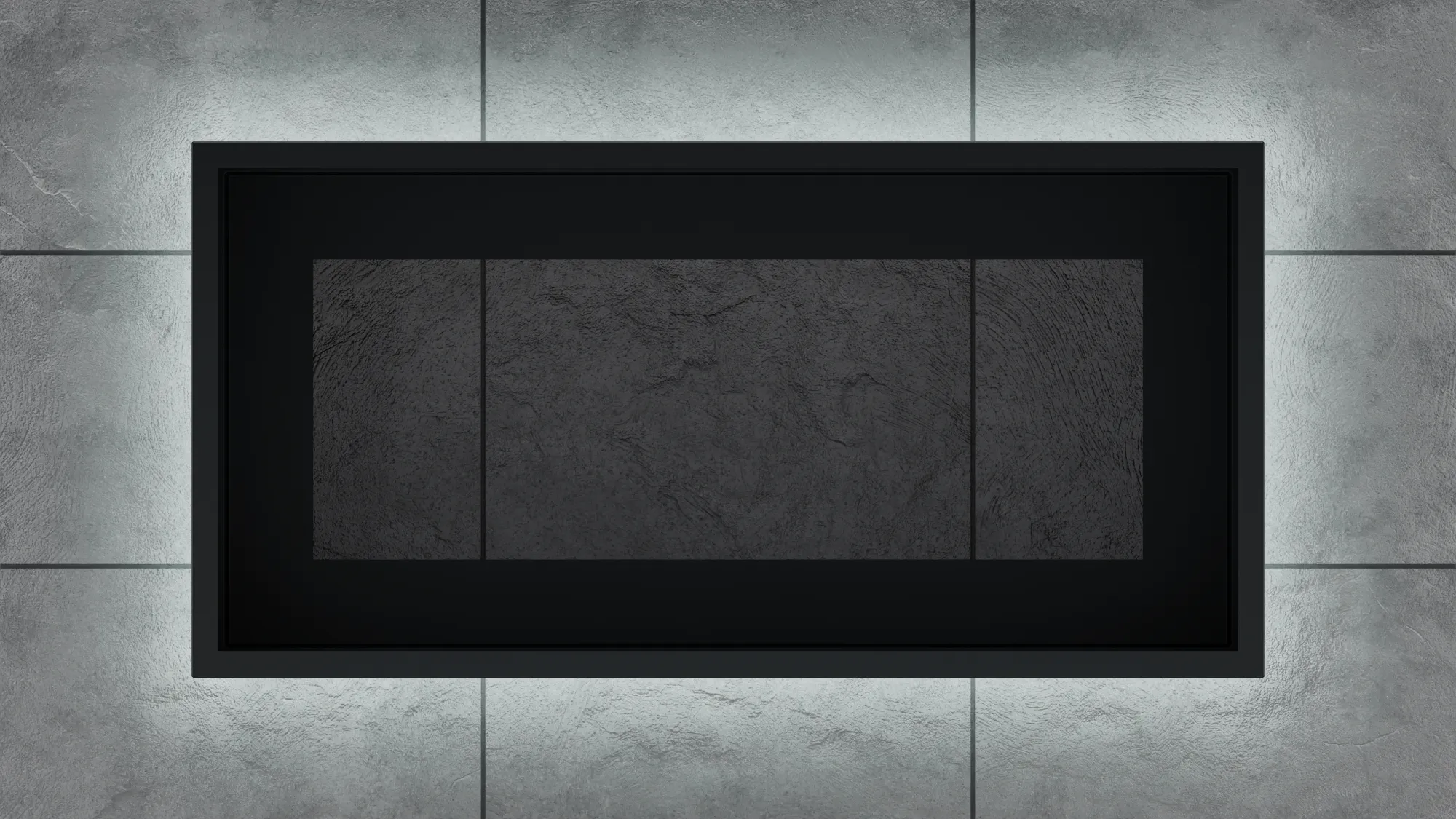

Nuvia LD integrates concealed LED lighting into the standard rectangular planter. By day the planter reads as the familiar Nuvia silhouette; by night, soft downward light wash defines the planter edges and creates a coordinated rhythm across multi-unit arrangements.
Available across the standard Nuvia range — both footprints and all seven heights (300mm to 1200mm) in CorTen, RAL 7016, or custom powder-coated finishes. LED specification confirmed at order stage. Made in the UK.

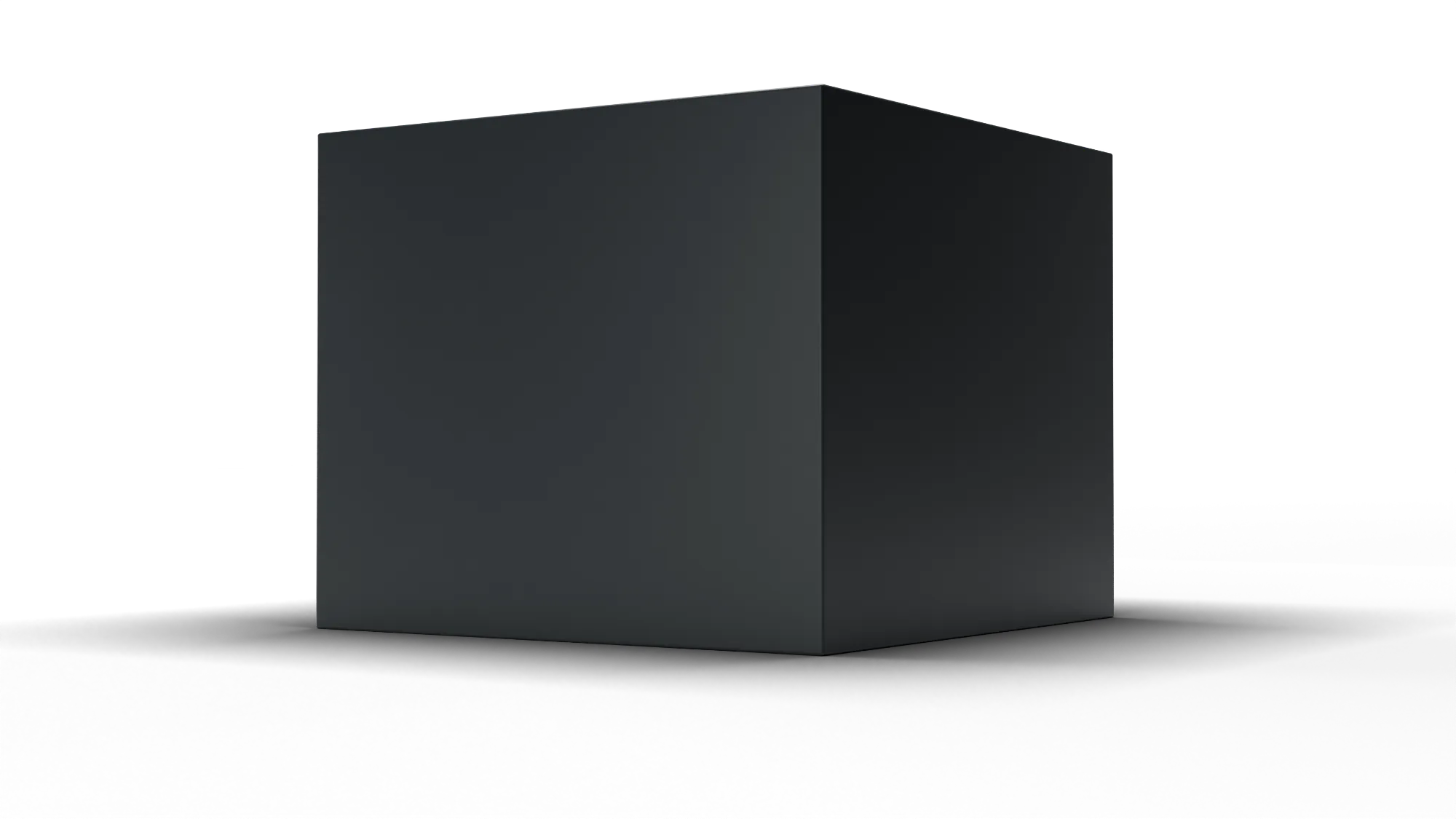

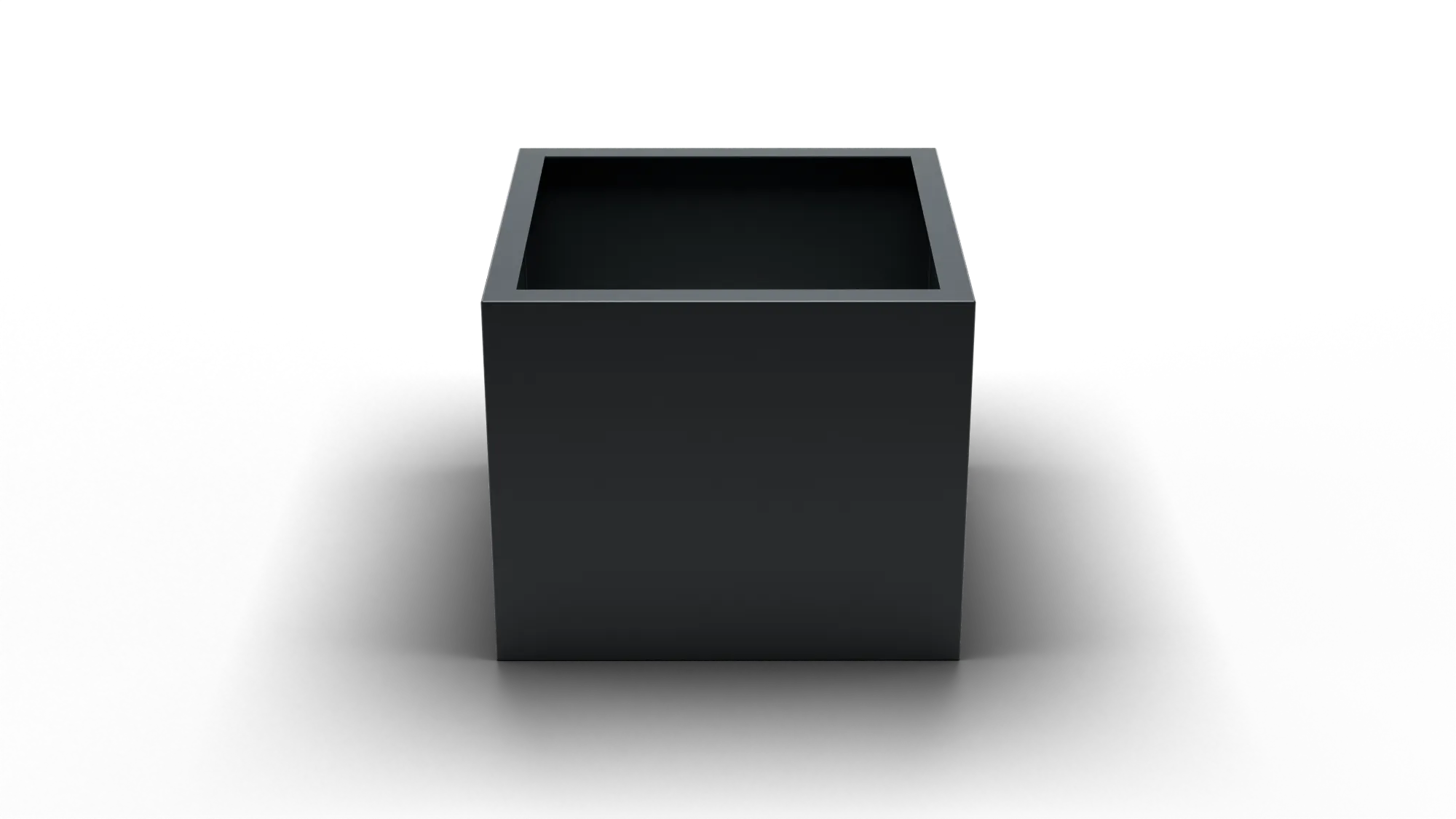

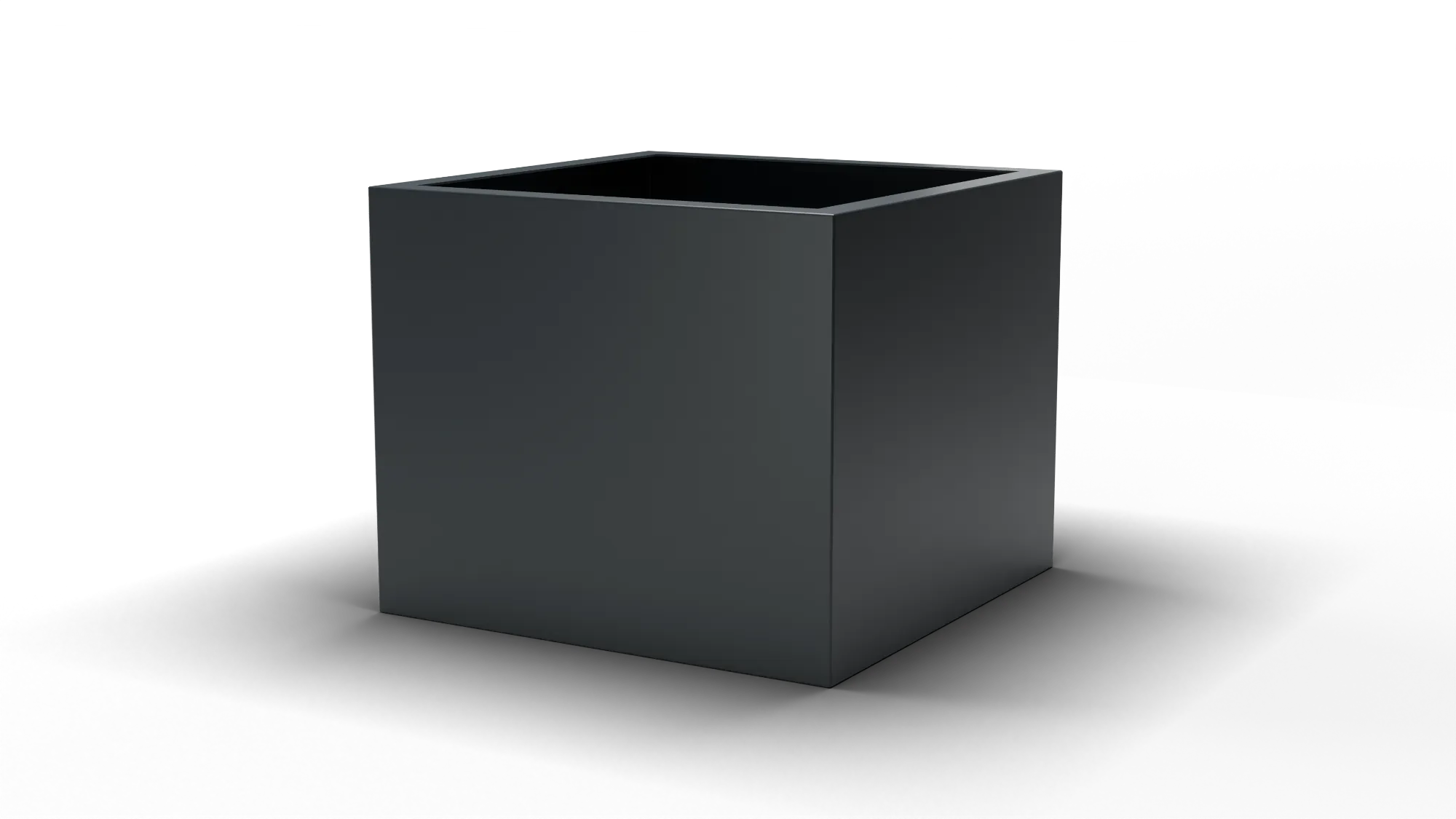

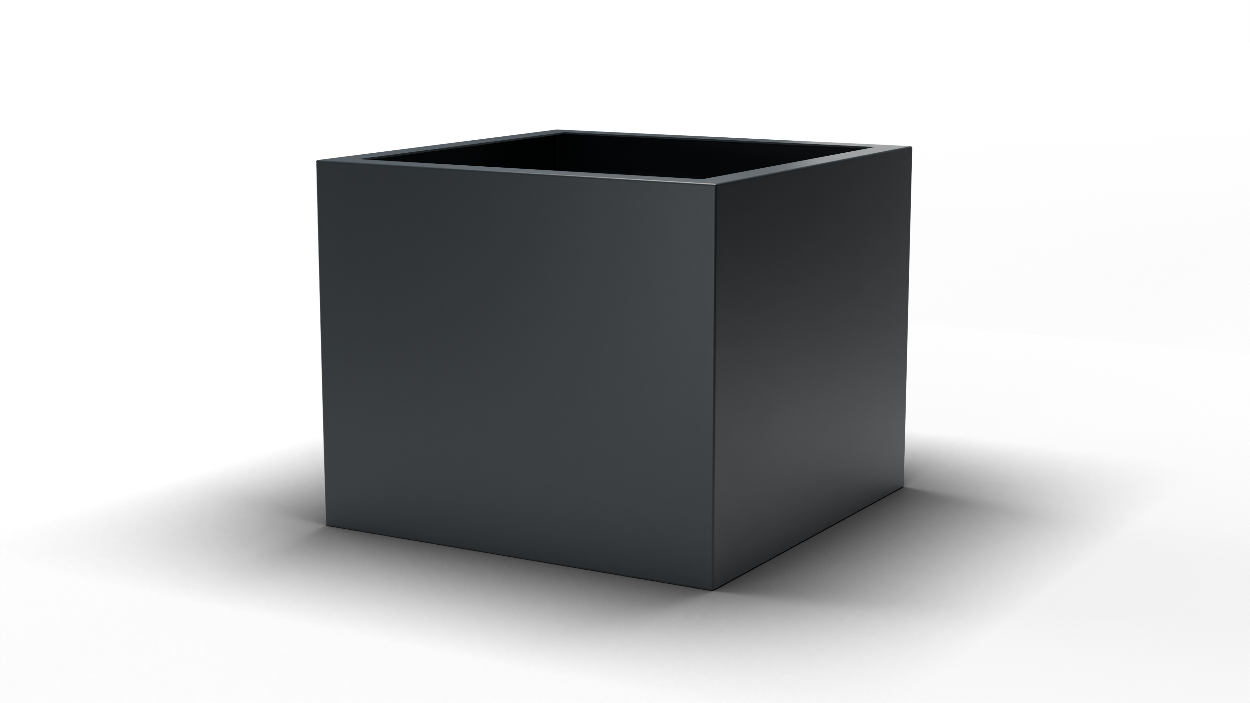

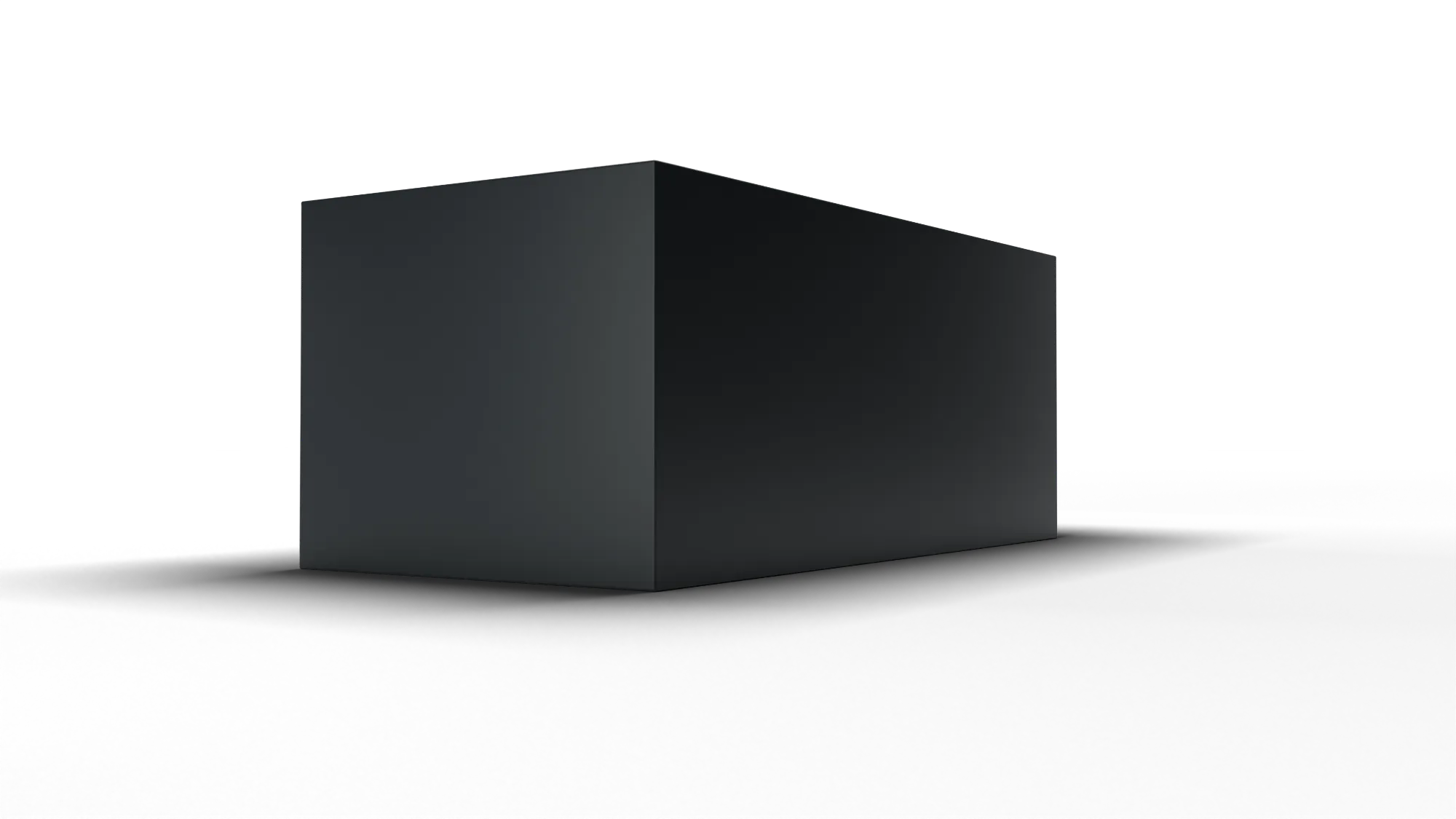

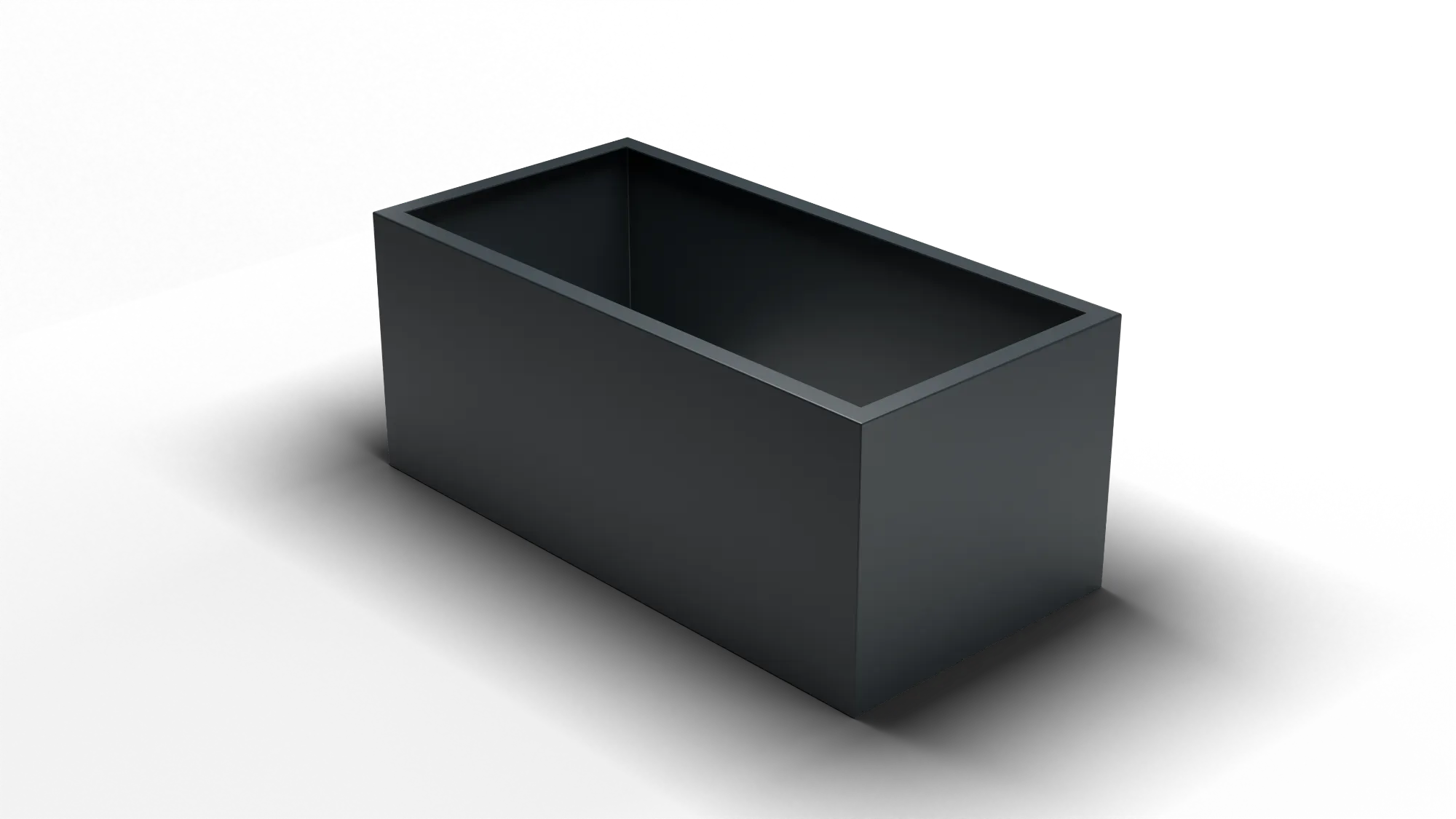

Nuvia Standard is the cleanest expression of the planter form: four flush sides, concealed corner brackets, and a softly defined top edge. Specify singly, in pairs, in series, or in mixed arrangements with the other Kinley planter geometries from Velin, Rava, and Kairo.

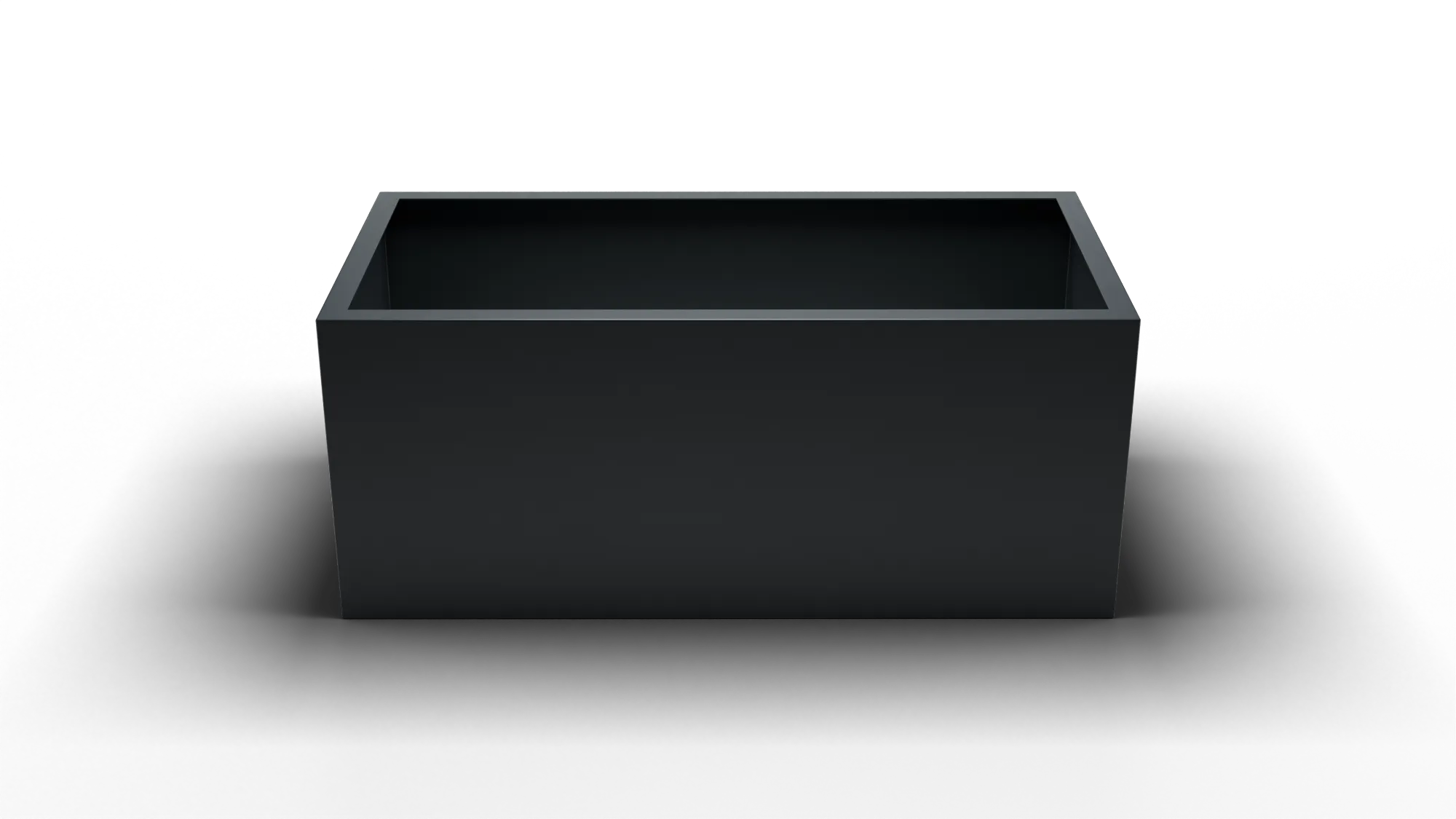

Square (600mm x 600mm) or rectangular (1200mm x 600mm) footprint. Seven heights (300, 400, 500, 600, 800, 1000, 1200mm). 3mm steel with 100mm footplate (heights up to 600mm) or 300mm footplate (800mm+). CorTen, RAL 7016, or custom powder-coated finishes.
