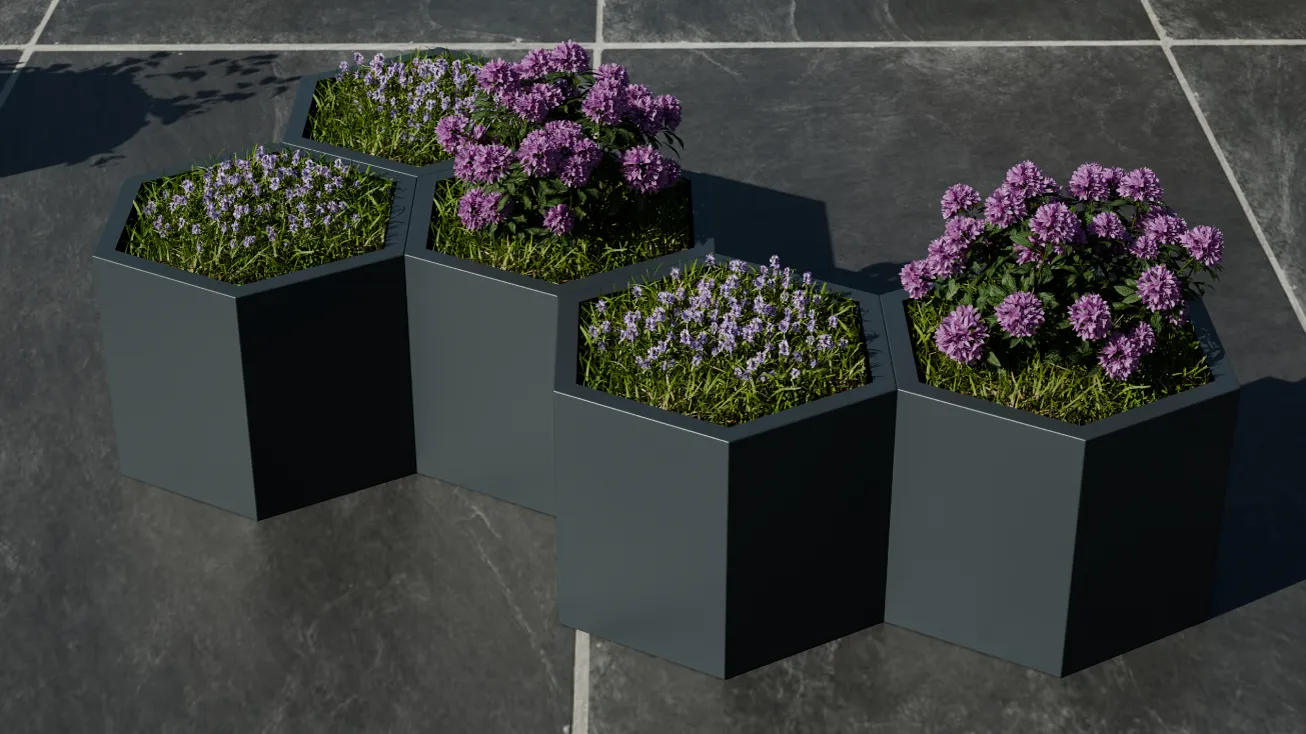

A hexagonal modular system combining planters and seating in a single geometric language. The 600mm flat-to-flat hexagon tessellates into honeycomb arrangements or stands alone as a feature — offering specifiers a distinctive alternative to standard square geometries across urban and commercial schemes.
Rava’s hexagonal form is the strategic asset: equal 346mm sides at 120° internal corners mean units lock together flush in any direction. The family extends beyond planters into single and double benches, supporting integrated planter-and-seating arrangements as one coordinated specification.
Planter dimensions: 600mm across flats x 346mm sides at 120° internal corners. Heights from 300mm to 1200mm. Bench variants (single, double, with end caps) extend the system. Constructed from 3mm folded steel in CorTen, RAL 7016, or custom powder-coated finishes. Made in the UK to BS EN 9001.
The Rava bench family extends through several specialty units: end caps (standard and LD) close off bench runs; tall right-hand end caps add visual height to one side; wide variants increase the seat depth for higher-traffic dwell areas; and inverted units rotate the hexagonal geometry for specific layout needs.
Variants include: End Cap LD, End Cap Tall R, Wide R, and Inverted. All in 3mm folded steel with Iroko seating where applicable. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK.
The LD version of the Rava Bench Double carries concealed lighting through both joined hexagonal modules. The result is a coordinated illumination effect across the bench’s full footprint, working with other LD units in the family to define the geometric pattern of the whole arrangement.
LD configuration of the Rava Bench Double. 3mm folded steel base; Iroko seat inserts. CorTen, RAL 7016, or custom powder-coated steel finishes. LED specification confirmed at order stage. Designed and manufactured in the UK.
Rava Bench Double pairs two hexagonal bench modules into a single connected unit. The result is a longer seating run that still reads as part of the hexagonal pattern, suitable for transit nodes, gathering areas, or wherever a single Rava module would feel undersized.
Two hexagonal modules joined at a shared edge. 3mm folded steel base; Iroko hardwood seating inserts. CorTen, RAL 7016, or custom powder-coated steel finishes. Designed and manufactured in the UK to BS EN 9001.
Rava Bench Single LD integrates concealed LEDs into the hexagonal bench form. By day, the bench reads as the standard single Rava module; by night, soft light defines the hexagonal footprint, working in concert with Rava Planter LD units to illuminate honeycomb arrangements as a coordinated pattern.
Available as the LD configuration of the single Rava bench module. 3mm folded steel base; Iroko hardwood seat. CorTen, RAL 7016, or custom powder-coated steel finishes. LED specification confirmed at order stage. Made in the UK.
The single Rava bench module preserves the hexagonal geometry of the planter at seating height, allowing integrated arrangements where benches and planters lock together in honeycomb patterns. The folded steel construction and concealed fixings carry through from the planter range.
Hexagonal seating module matching the 600mm flat-to-flat Rava geometry. 3mm folded steel base. Available with Iroko hardwood seating insert. CorTen, RAL 7016, or custom powder-coated steel finishes. Designed and manufactured in the UK to BS EN 9001.

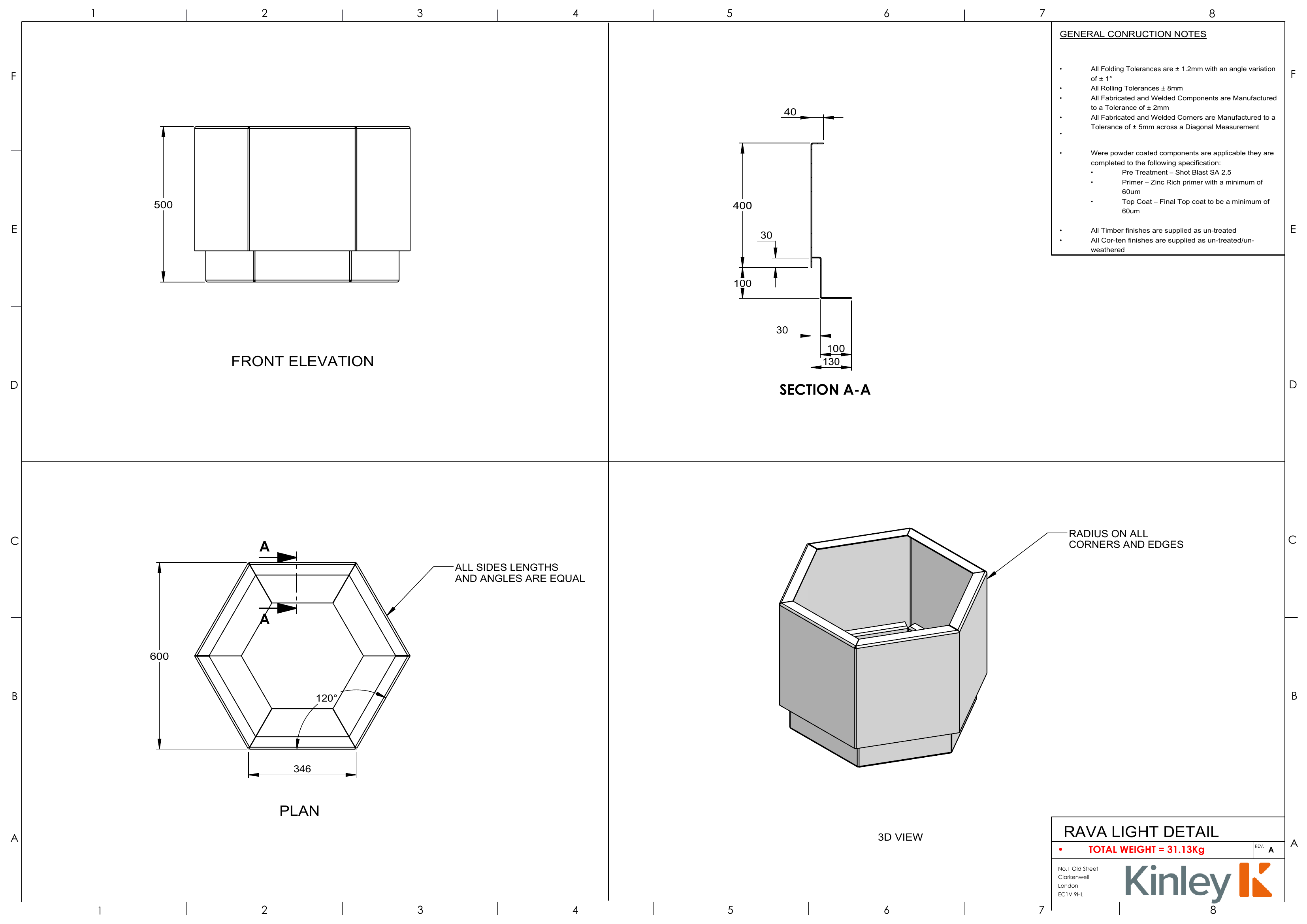

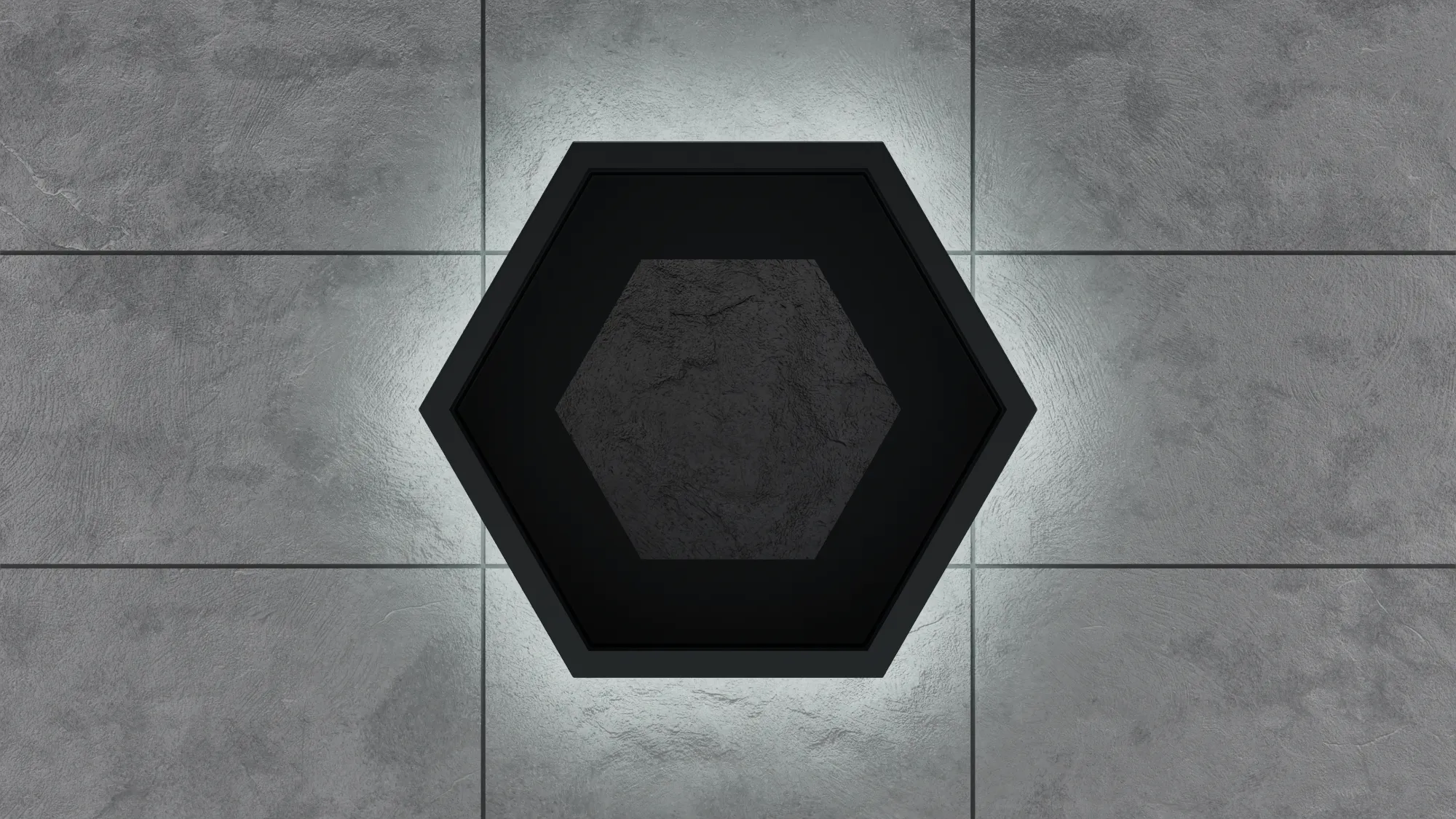

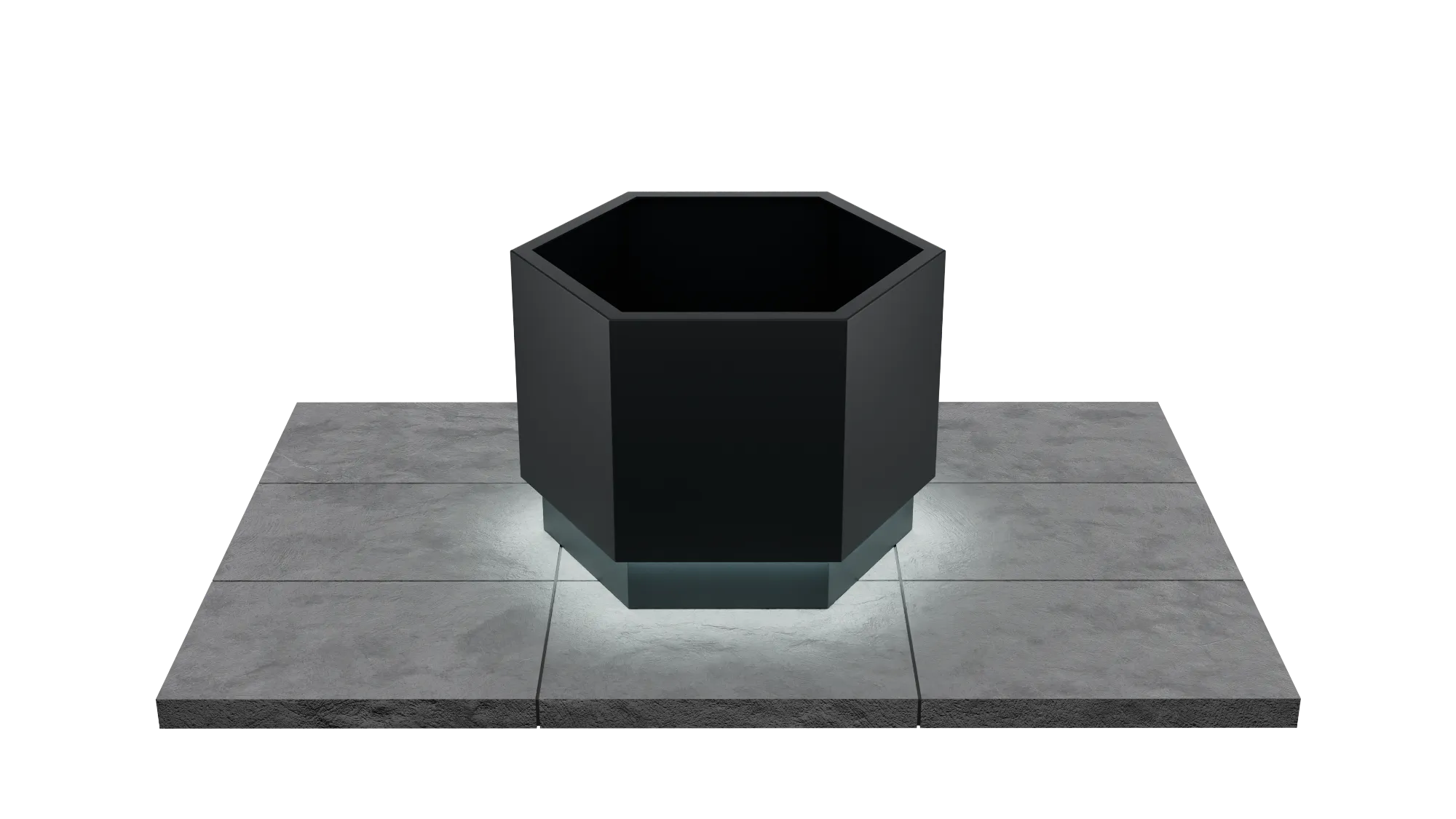

Rava Light Detail integrates concealed LED illumination into the hexagonal planter form. By day, the planter reads as the standard Rava silhouette; by night, soft light grazes the surrounding ground, defining the hexagonal pattern and creating a layered visual effect across honeycomb arrangements.
Available across the standard Rava planter range (300mm to 1200mm) in CorTen, RAL 7016, or custom powder-coated finishes. LED specification (lumen output, colour temperature, IP rating) confirmed at order stage. Made in the UK.

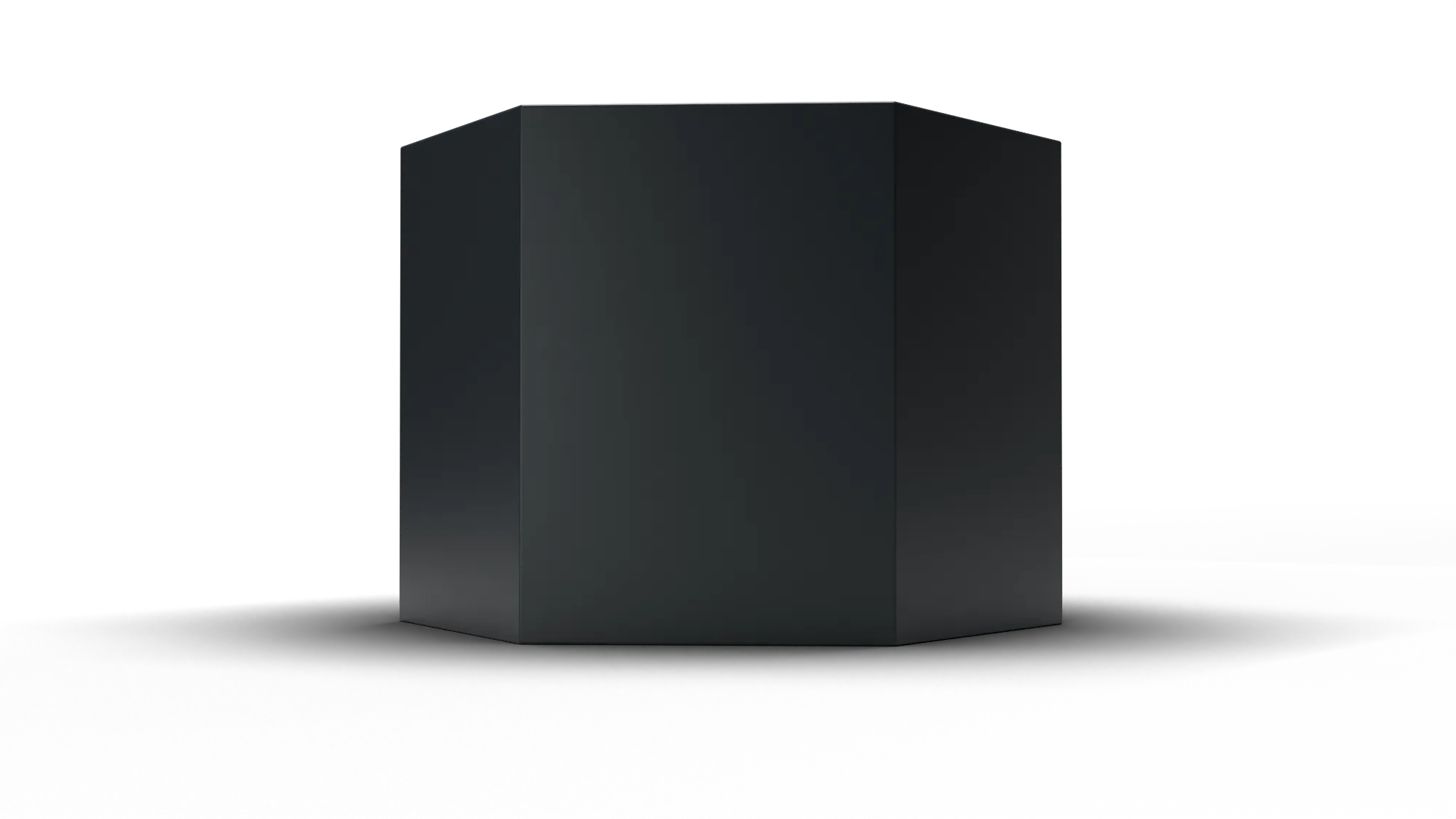

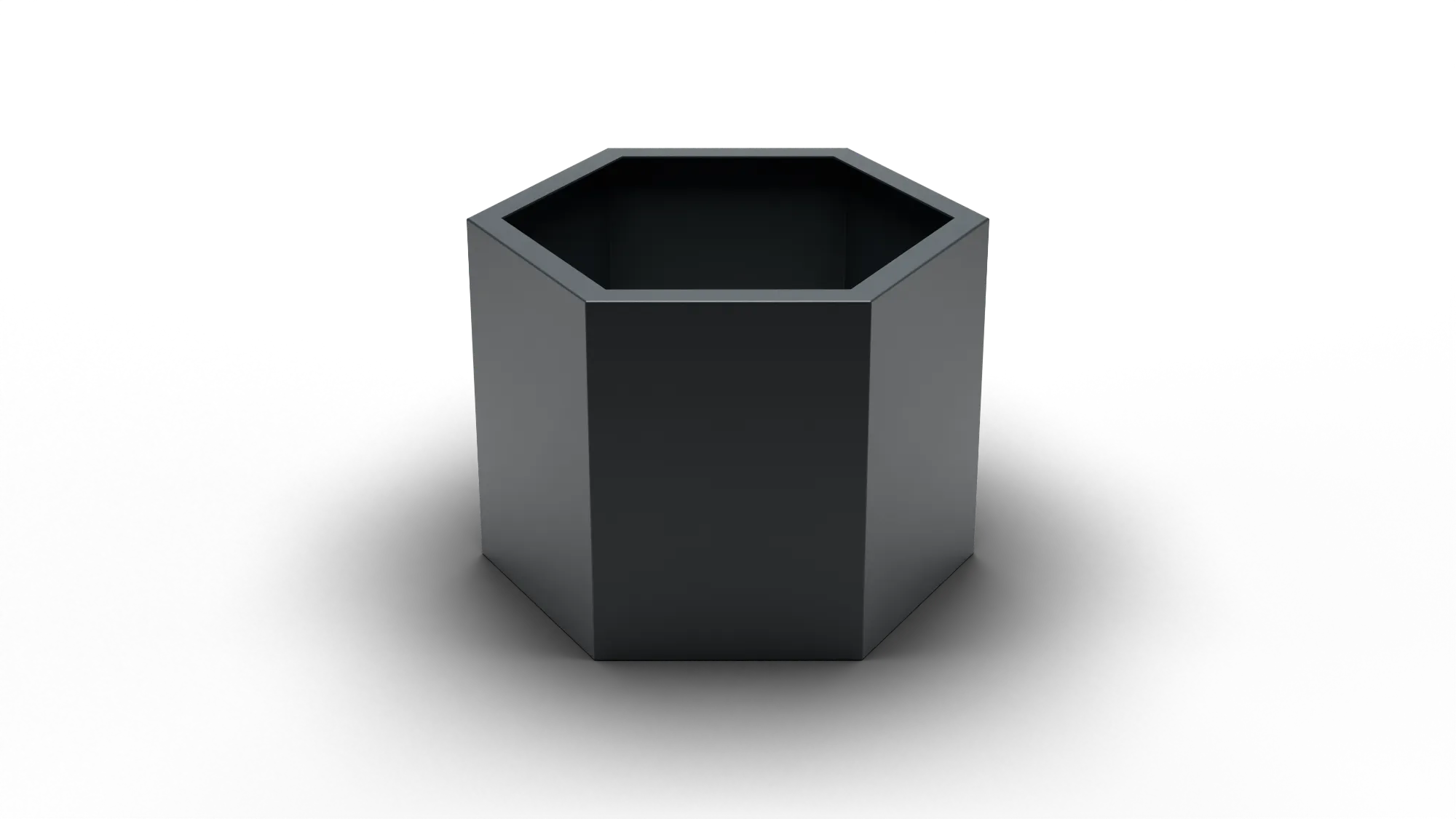

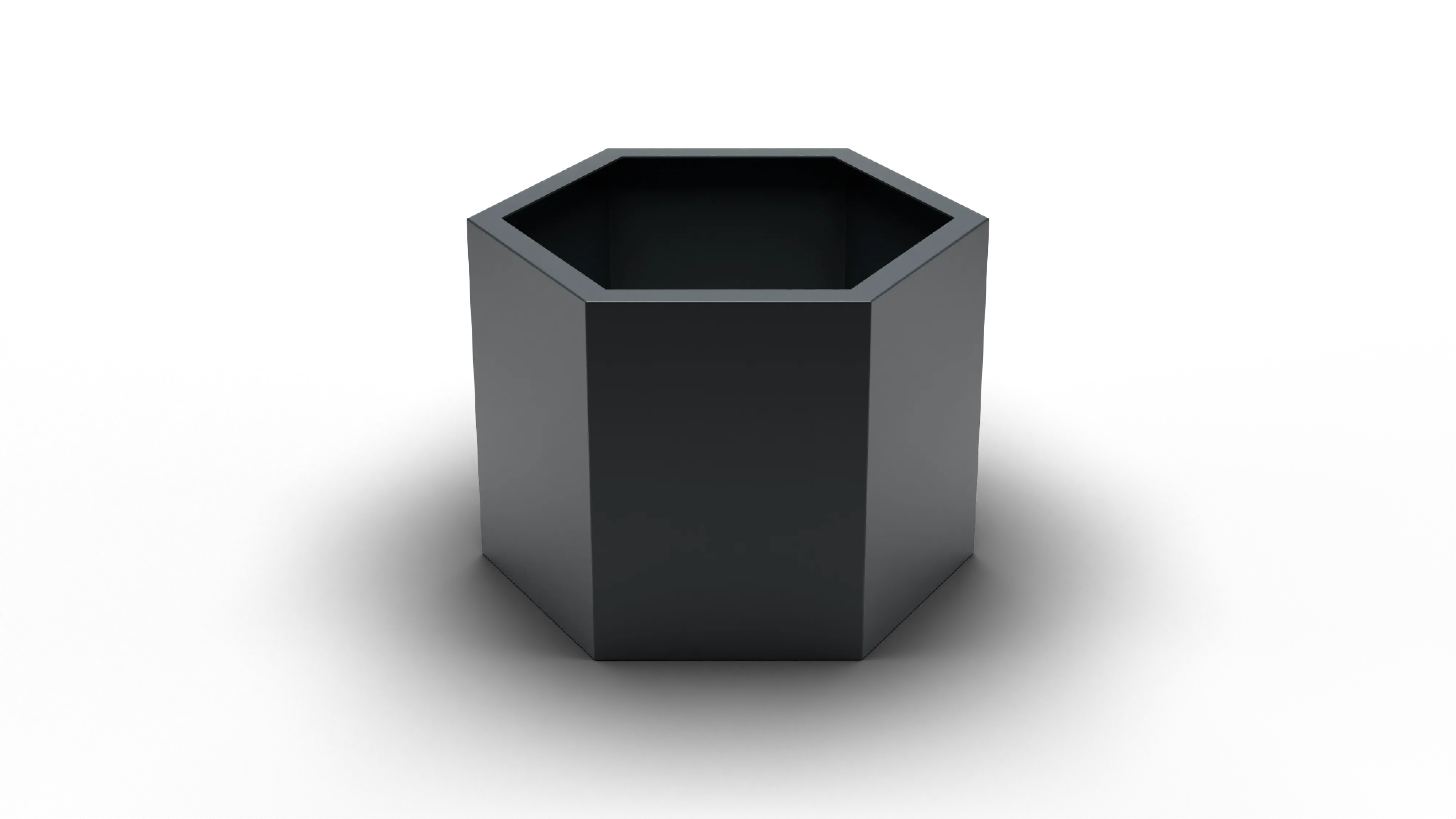

Rava’s hexagonal planter is its defining piece: six equal 346mm sides at 120° internal corners, formed from folded 3mm steel with concealed internal fixings. Specify singly as a sculptural feature or in honeycomb groupings that read as designed pattern rather than placement.
600mm across flats, 346mm side length, 120° internal corners. Heights of 300, 400, 500, 600, 800, 1000, 1200mm. 3mm steel construction in CorTen, RAL 7016, or custom powder-coated finishes. Delivered flat-packed with M10 anchor bolts and gasket tape. Made in the UK to BS EN 9001.
