A contemporary slatted outdoor bench in FSC-certified Iroko hardwood and folded steel. Vetra brings architectural restraint and natural warmth to public realm seating, designed with the same engineering rigour as Kinley’s edging systems. Made in the UK for parks, campuses, commercial schemes, and urban public spaces.

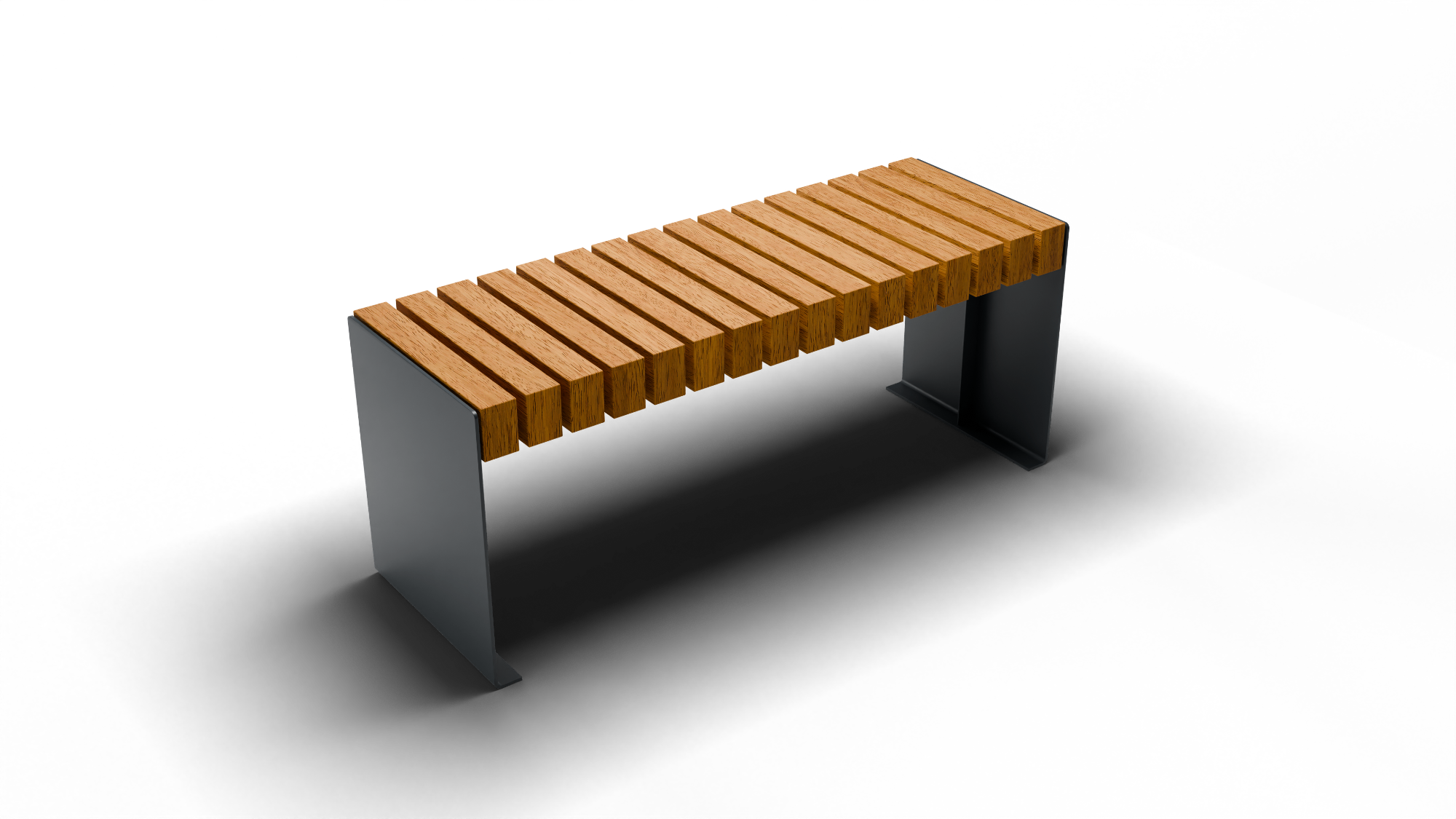

Vetra’s silhouette is deliberately understated: slatted Iroko hardwood set into a folded 3mm steel base with concealed brackets. A 2mm radius softens every timber edge; the hardwood weathers to silver-grey if untreated, or holds its warm tone with annual oiling. Multiple configurations adapt the family to varied site needs.
Base dimension 1200mm (L) x 368mm (W) x 500mm (H). 60mm x 90mm Iroko slats on 3mm folded steel frame. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001; FSC-certified. Delivered flat-packed with stainless steel screws and concealed brackets.

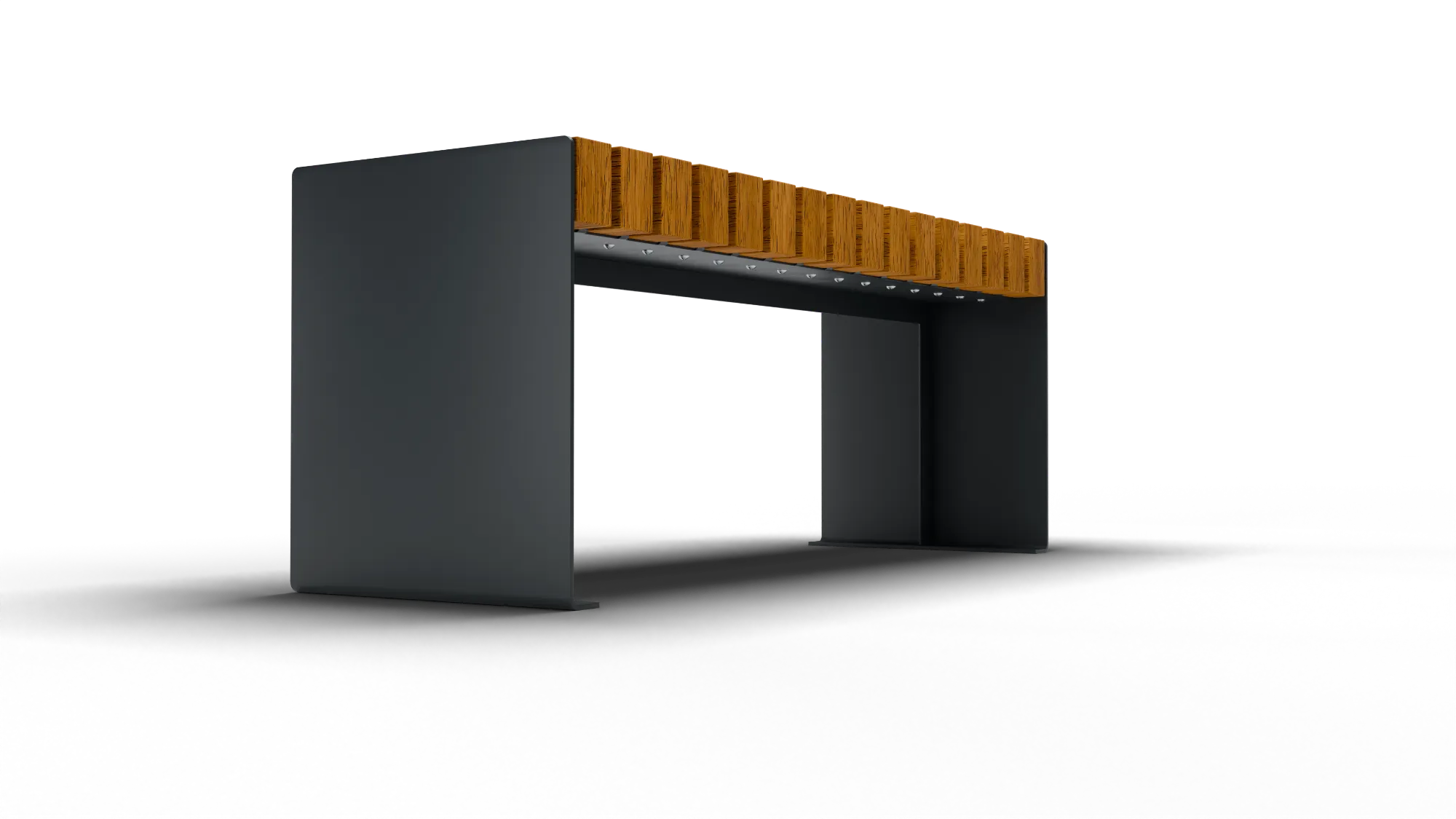

The overhang variant cantilevers the seat beyond its base supports, lightening the bench’s visual weight and giving it a more dynamic profile. Specified in the plain configuration, the bench reads as a continuous folded steel form with no visible base footprint underneath the seating zone.
Folded 3mm steel construction. 1200mm length. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001. Surface fixing required to manage cantilever loads.
The plain Vetra removes the Iroko slatted top in favour of a continuous folded steel surface. The result is a more sculptural, monolithic piece that still reads as part of the Vetra family but with a sharper, more graphic visual line. Suits contemporary minimal schemes.
Folded 3mm steel construction throughout. CorTen, RAL 7016, or custom powder-coated finishes. 1200mm length to match standard Vetra modules. Designed and manufactured in the UK to BS EN 9001.

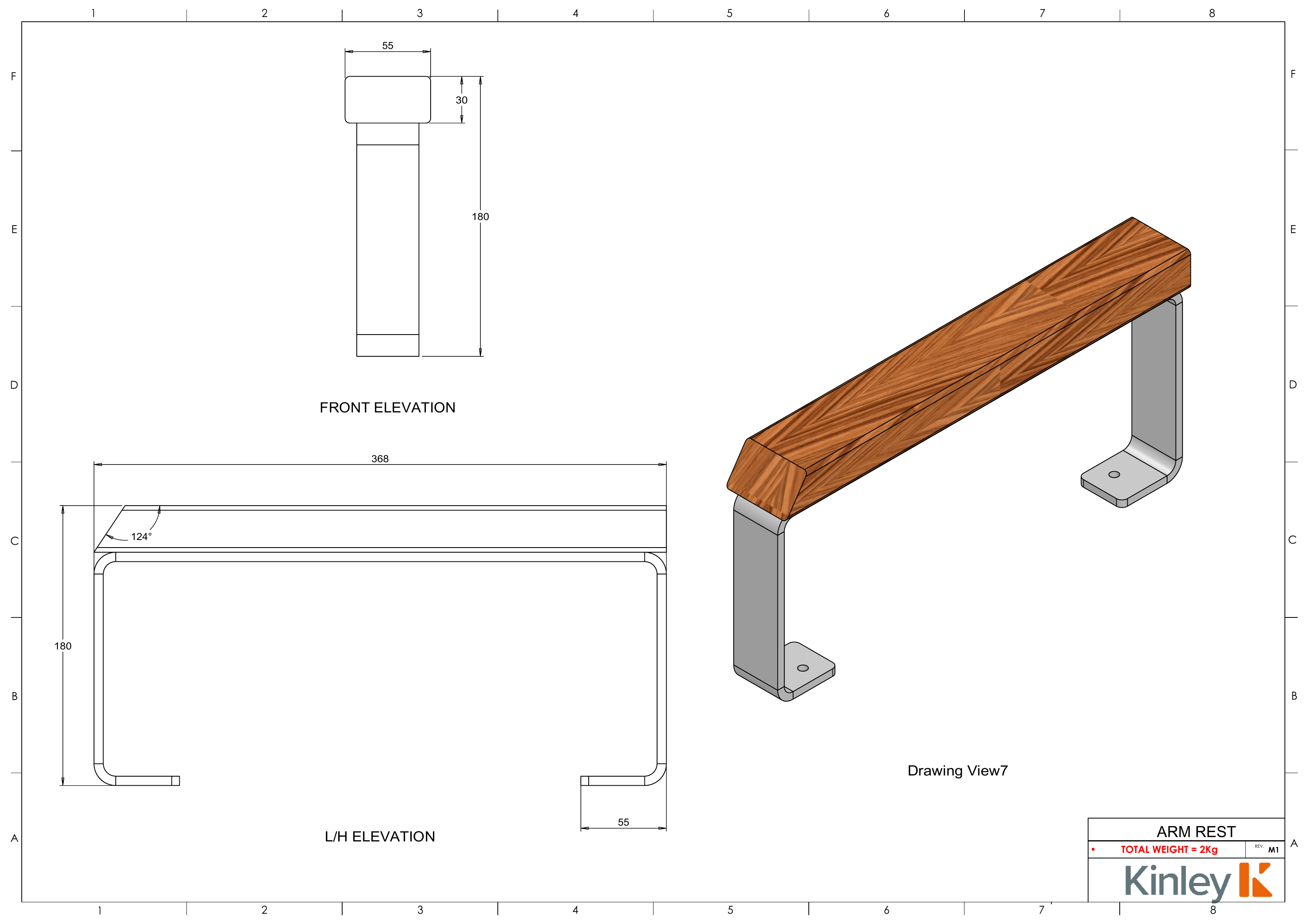

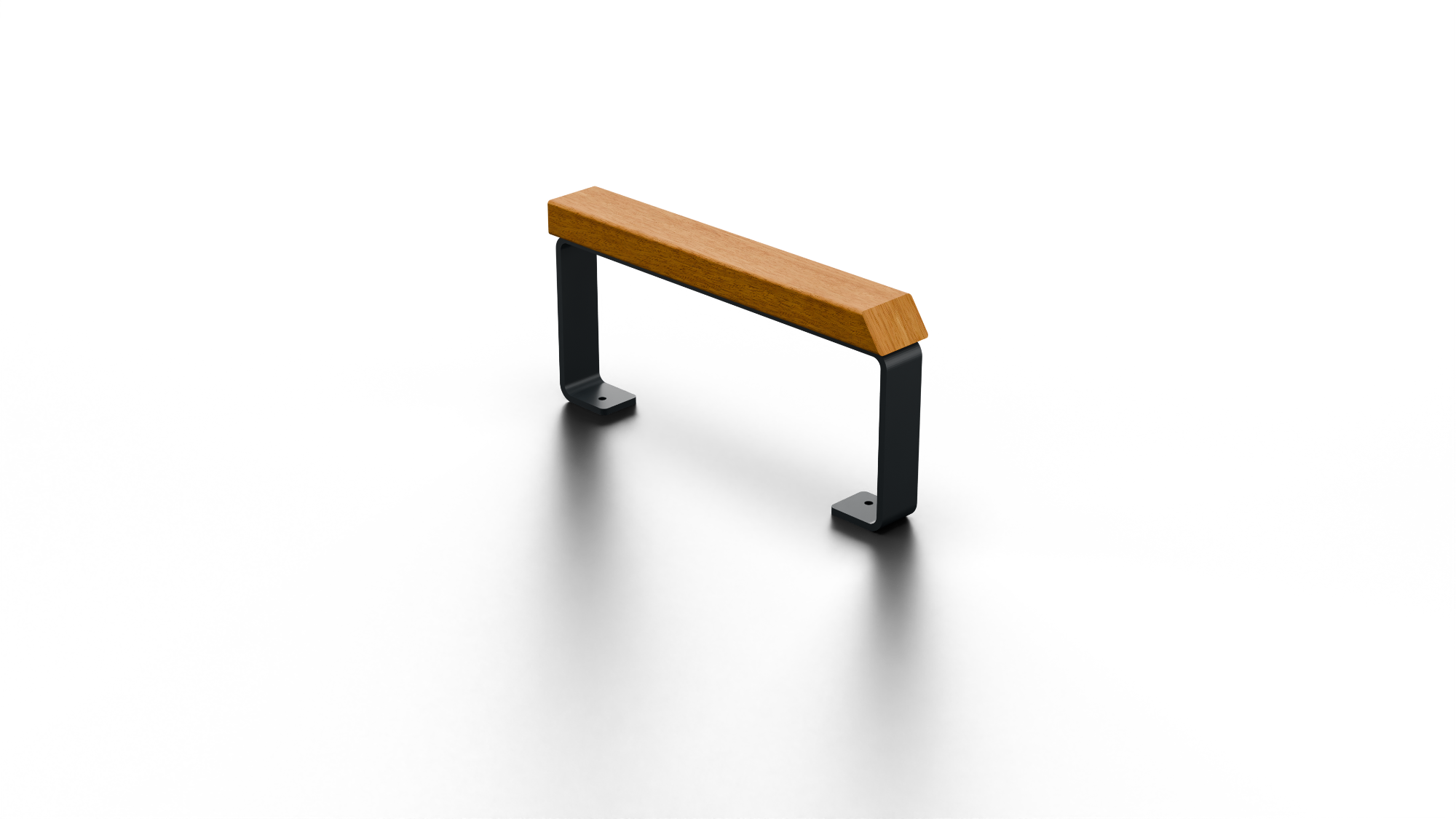

The arm rest is engineered to integrate cleanly with the Vetra silhouette: matched steel detailing, matched finish options, and a profile that reads as part of the bench rather than an added accessory. Provides defined seating positions and supports users with reduced mobility.
Available as a configuration of the standard Vetra bench in CorTen, RAL 7016, or custom powder-coated finishes. 3mm steel construction with stainless steel fixings. Designed and manufactured in the UK to BS EN 9001; FSC-certified.

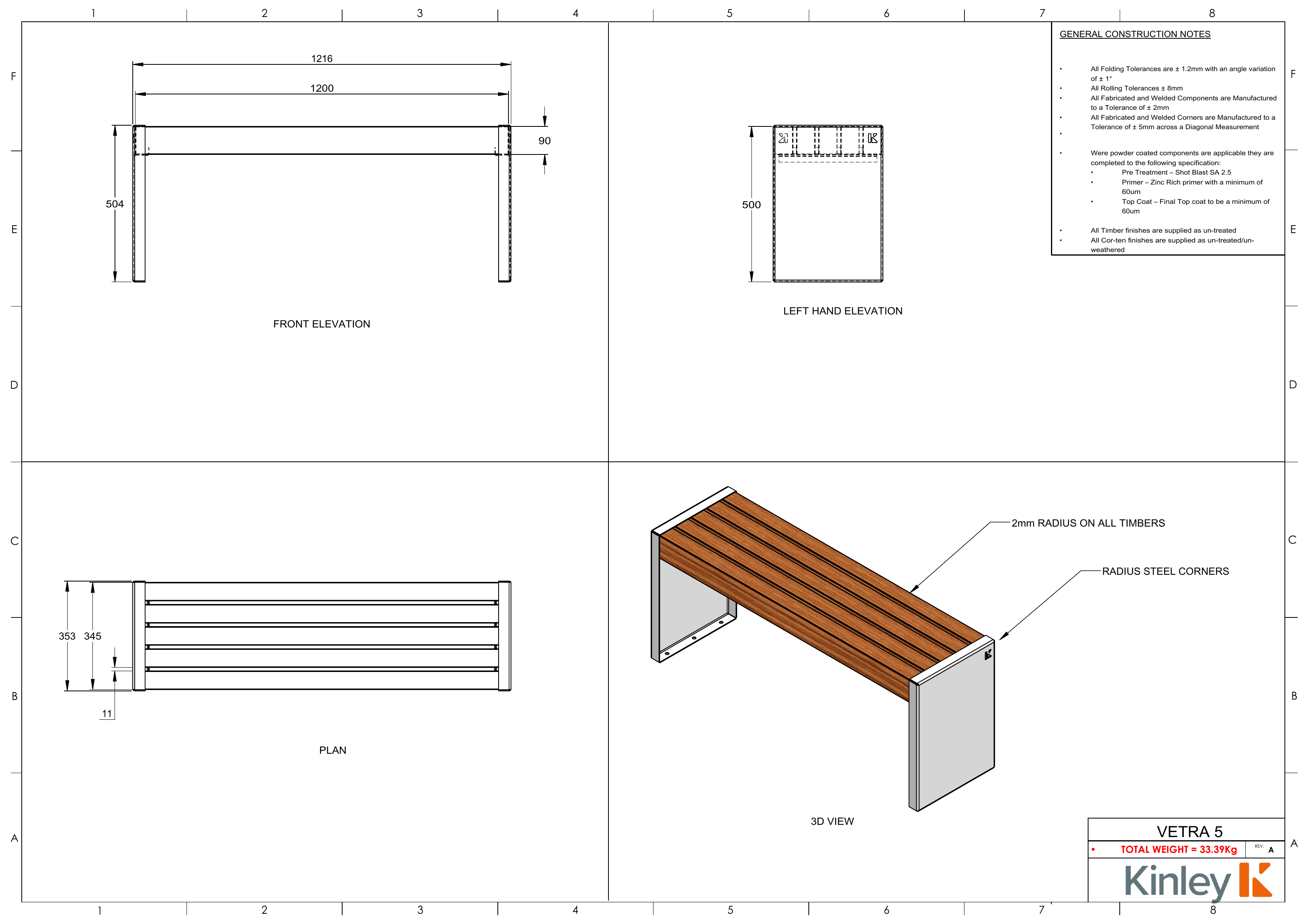

Vetra 5 holds the slatted Iroko top, folded steel base, and concealed bracket detail of the wider family while offering a mid-range mass between the lightest and heaviest standard variants. The 2mm timber edge radius and 15mm inset remain consistent throughout.
Total weight 33.39kg — sitting between Vetra 3 (30.39kg) and Vetra 1 (40.47kg). 60mm x 90mm Iroko slats on 3mm folded steel frame. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001; FSC-certified.

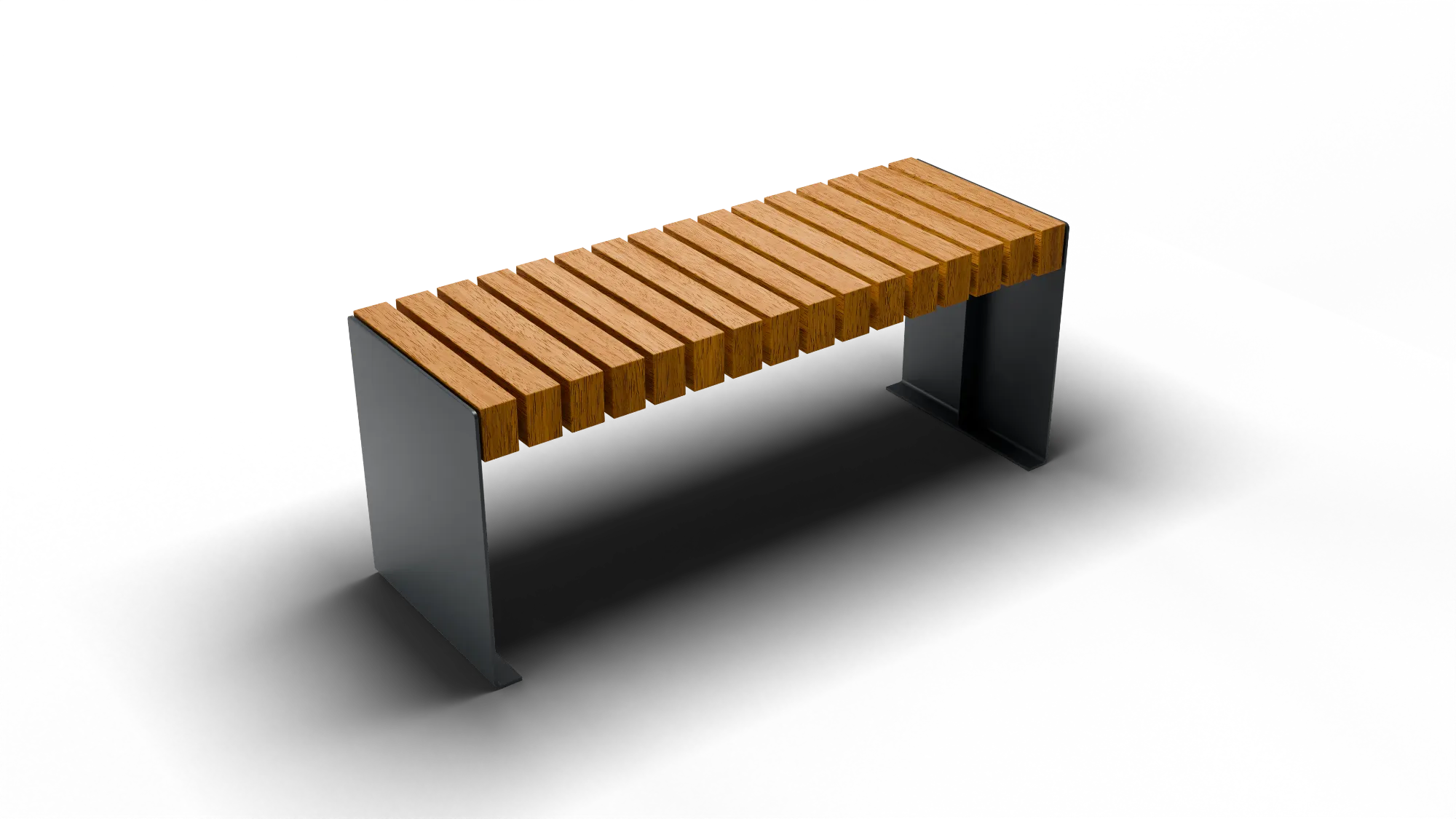

Vetra 4 increases the bench’s visual mass through deeper proportions while maintaining the slatted Iroko top, folded steel base, and concealed fixing details that define the family. Useful where the bench needs to hold its own against larger architectural elements around it.
Total weight 47.94kg — the heaviest standard Vetra variant. 60mm x 90mm Iroko slats on 3mm folded steel frame. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001; FSC-certified.

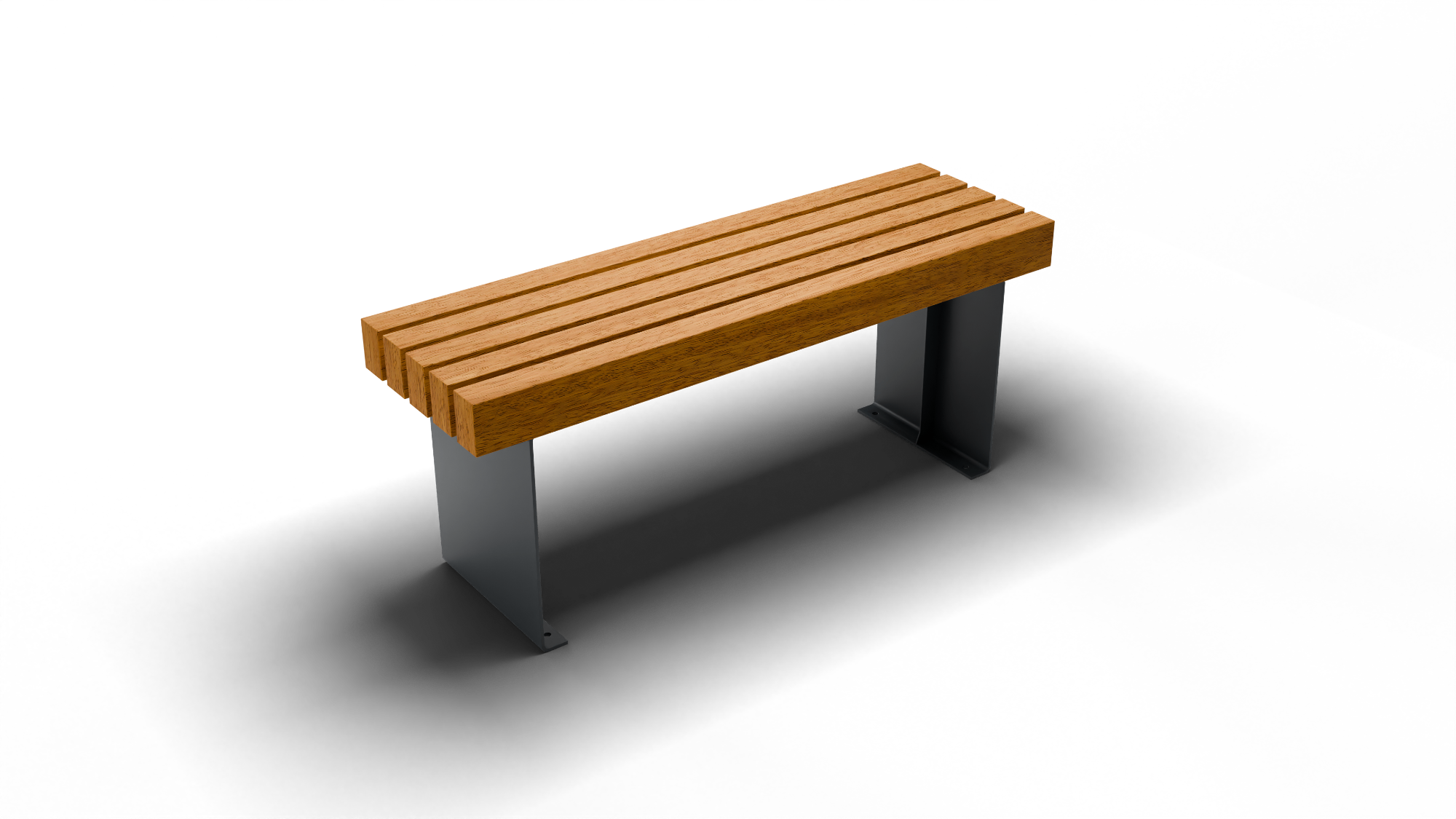

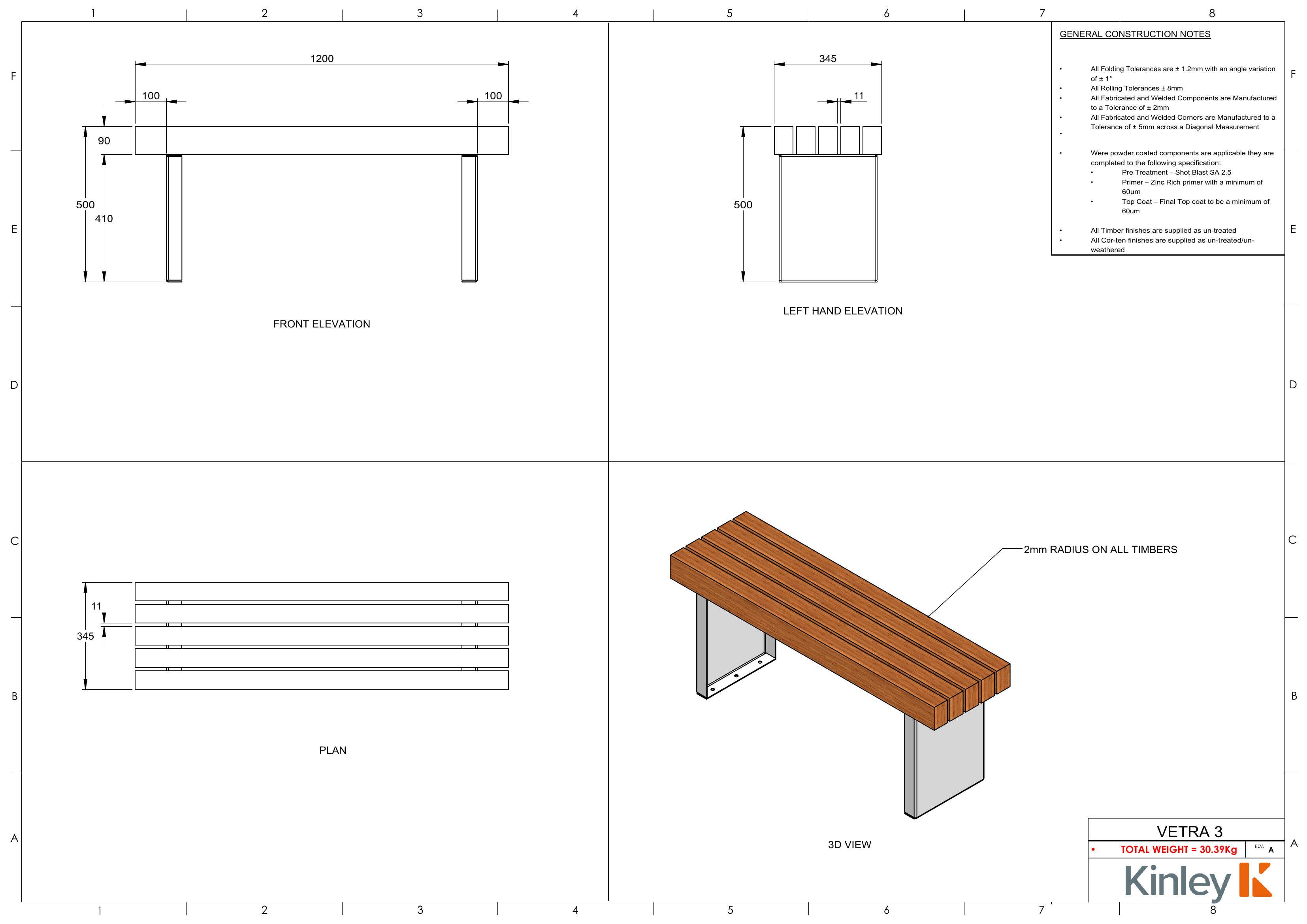

Vetra 3 holds the family aesthetic — slatted Iroko top, folded steel base, concealed fixings, 2mm timber edge radius — while offering a lighter configuration at 30.39kg. Useful where the visual weight of the base unit feels excessive for the setting.
Total weight 30.39kg — the lightest of the standard Vetra variants. 60mm x 90mm Iroko slats on 3mm folded steel frame. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001; FSC-certified.

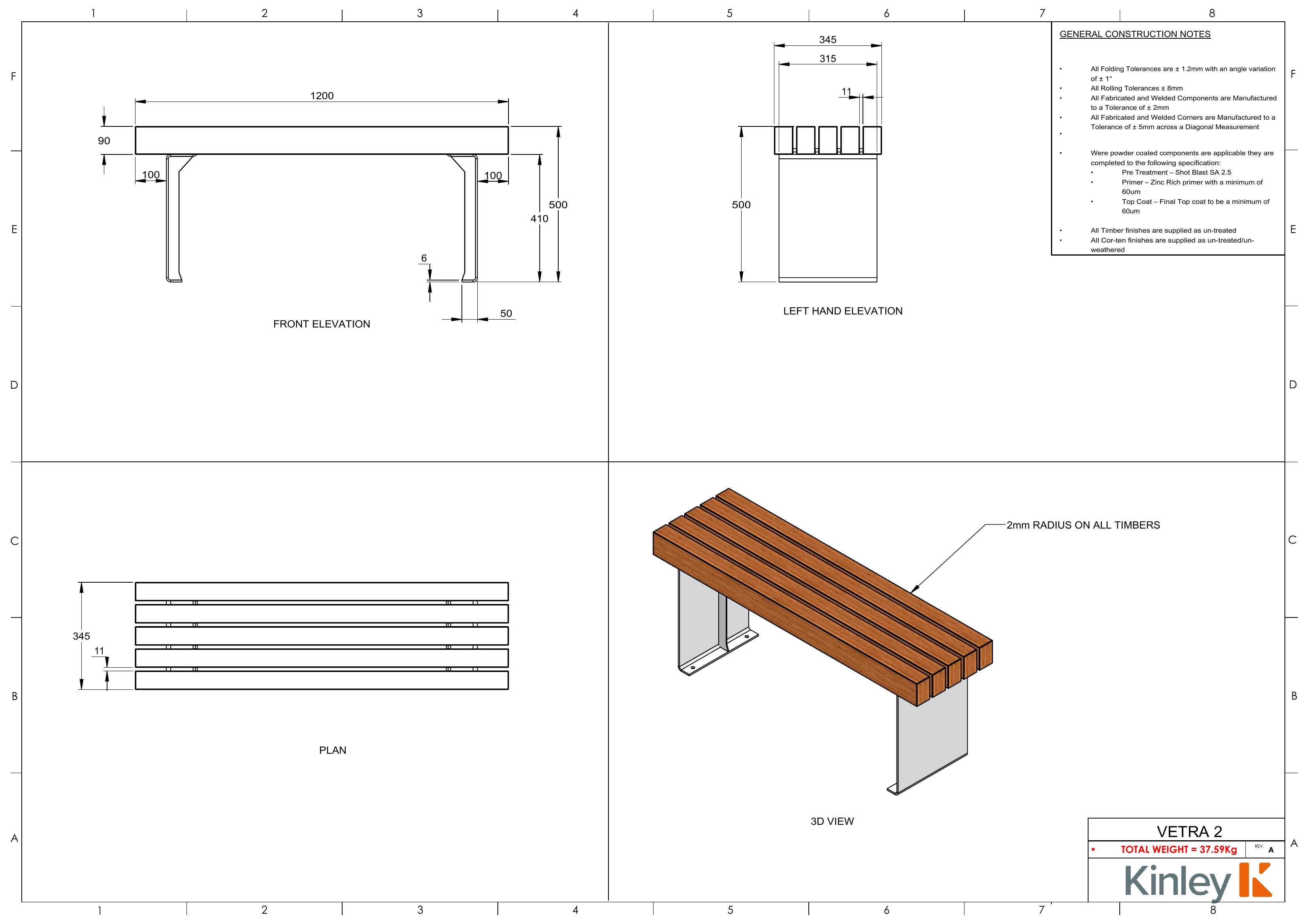

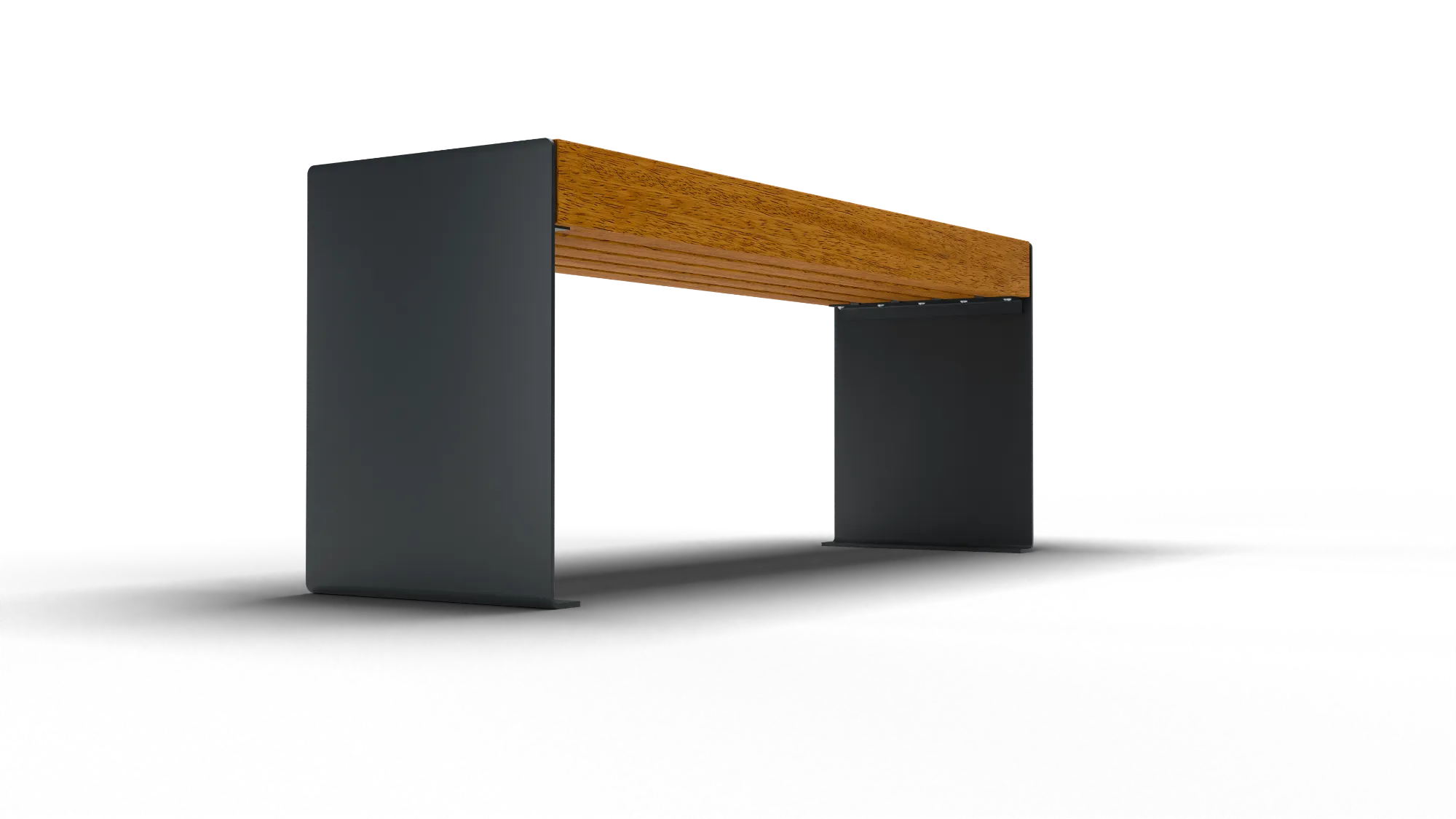

Vetra 2 carries the family’s slatted Iroko top and folded 3mm steel base, with proportions adjusted to suit alternative site contexts. The 2mm timber edge radius, 15mm inset, and concealed fixing detail are preserved exactly as in Vetra 1.
Total weight 37.59kg. 60mm x 90mm Iroko slats on 3mm folded steel frame. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001; FSC-certified.

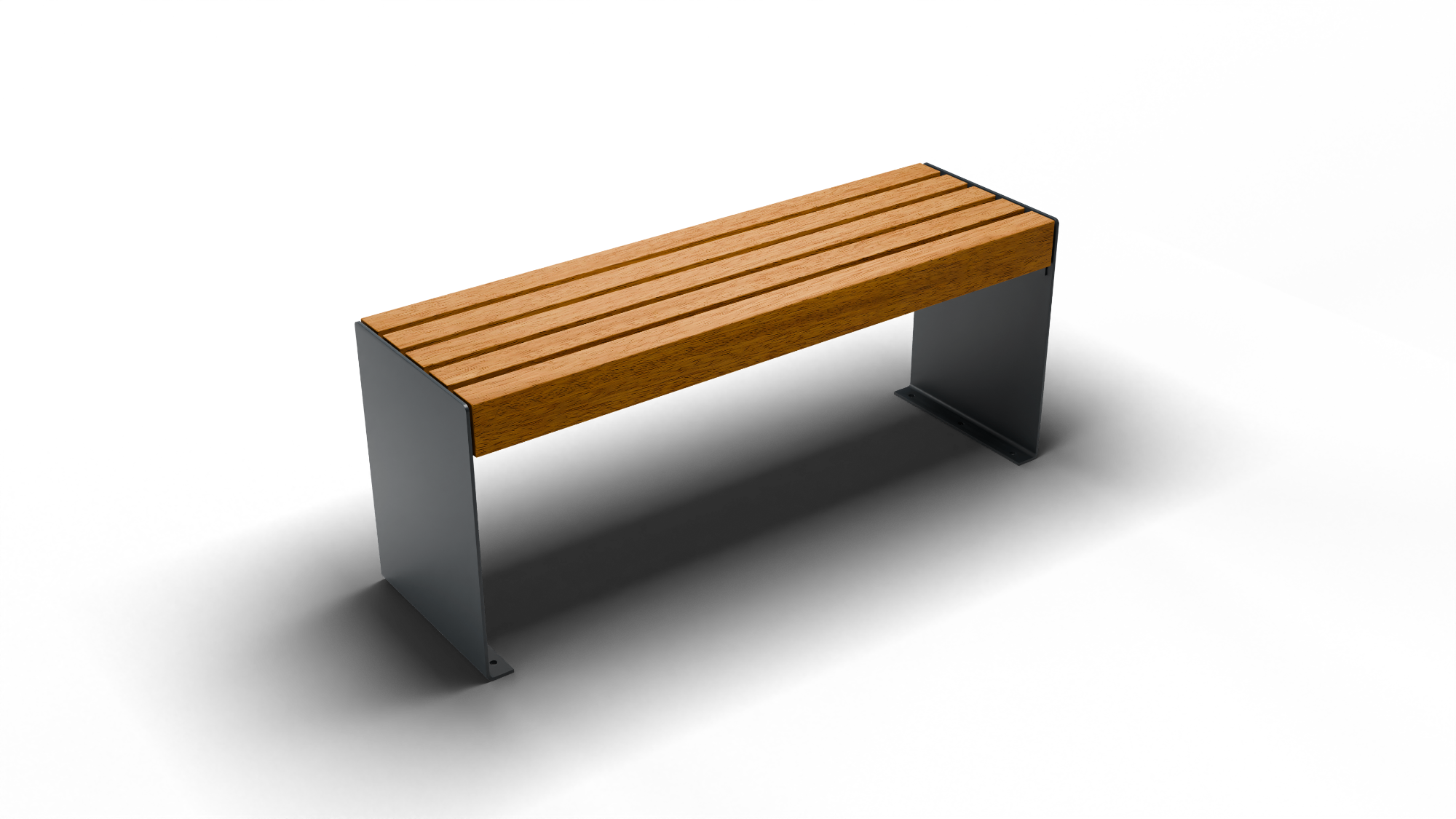

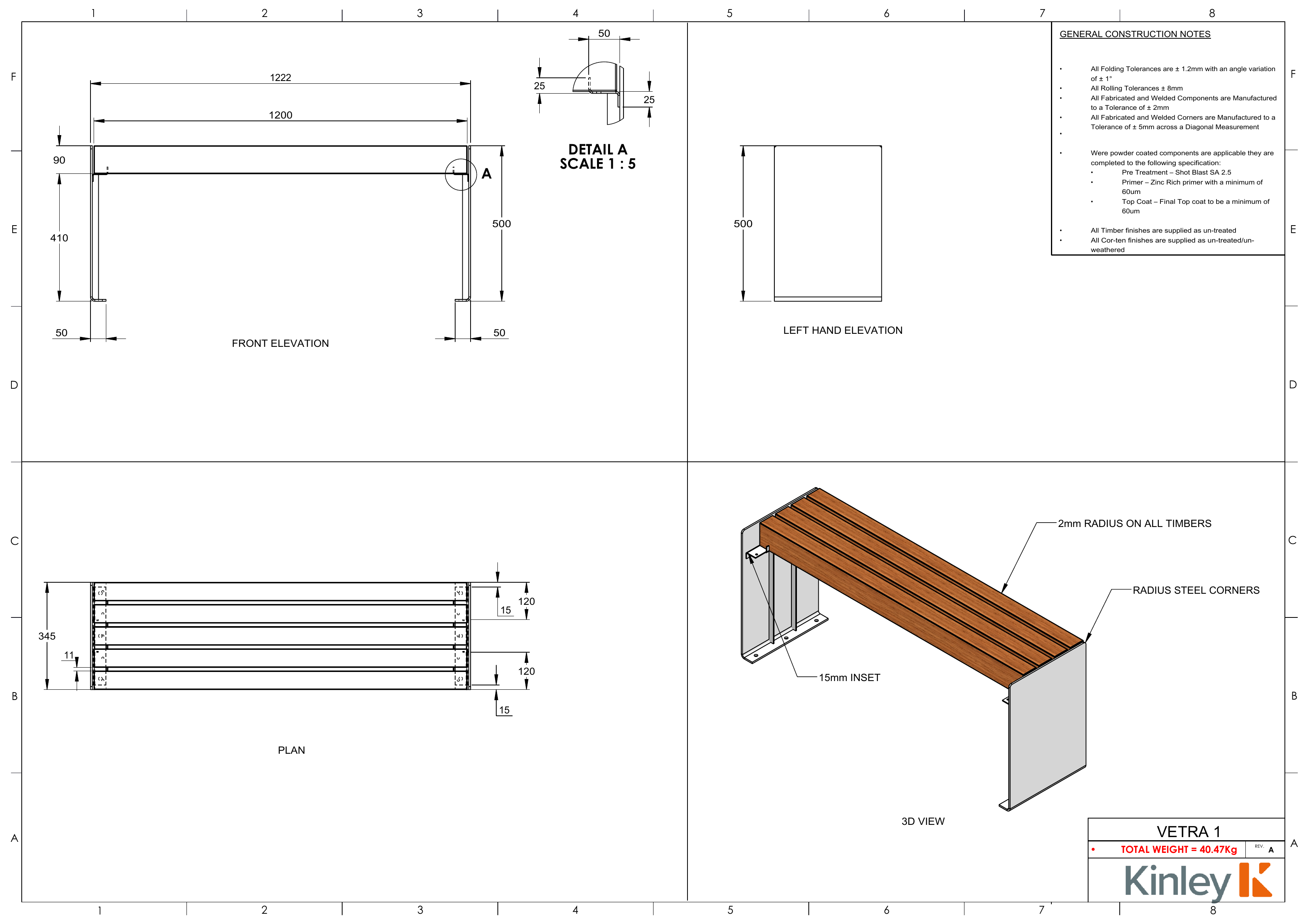

Vetra 1 carries the clean rectangular form that defines the family: Iroko hardwood slats set into a 3mm folded steel base with concealed brackets. The 15mm timber inset and 2mm edge radius are calibrated to soften the silhouette without losing its architectural discipline.
Dimensions 1200mm x 345mm x 500mm. 60mm x 90mm Iroko slats on 3mm folded steel frame. Total weight 40.47kg. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001; FSC-certified.
Vetra’s silhouette is deliberately understated: slatted Iroko hardwood set into a folded 3mm steel base with concealed brackets. A 2mm radius softens every timber edge; the hardwood weathers to silver-grey if untreated, or holds its warm tone with annual oiling. Multiple configurations adapt the family to varied site needs.
Base dimension 1200mm (L) x 368mm (W) x 500mm (H). 60mm x 90mm Iroko slats on 3mm folded steel frame. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001; FSC-certified. Delivered flat-packed with stainless steel screws and concealed brackets.
