HiGrade

Modular steel planter edging for ground-level borders, raised beds, and demarcation across hard and soft landscapes. Available in seven heights from 300mm to 600mm, with straight, corner, and curved units, in CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK.

DOWNLOAD TECHNICAL DRAWINGS

DOWNLOAD BIM/ 3D MODELS

Get inspired

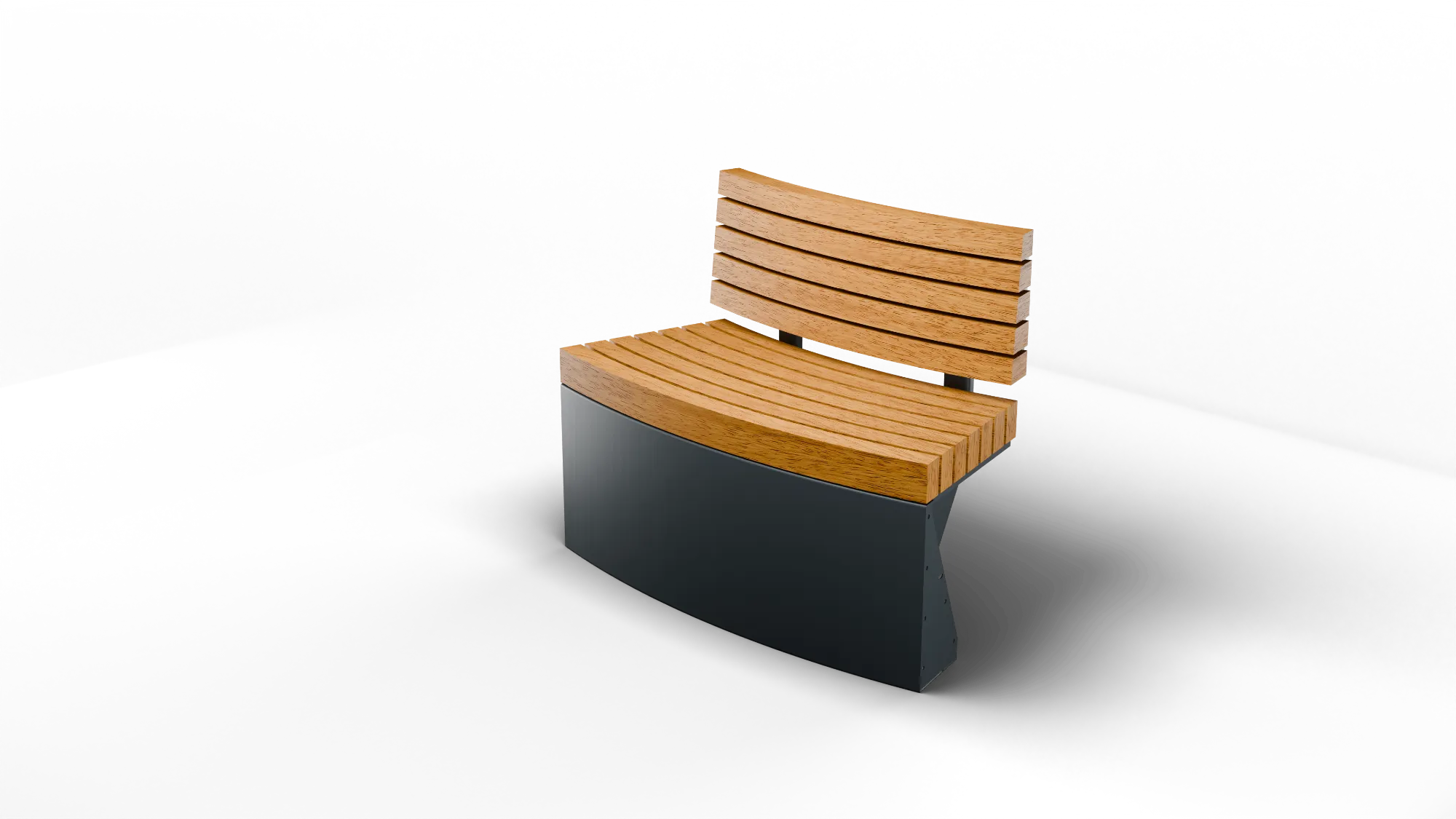

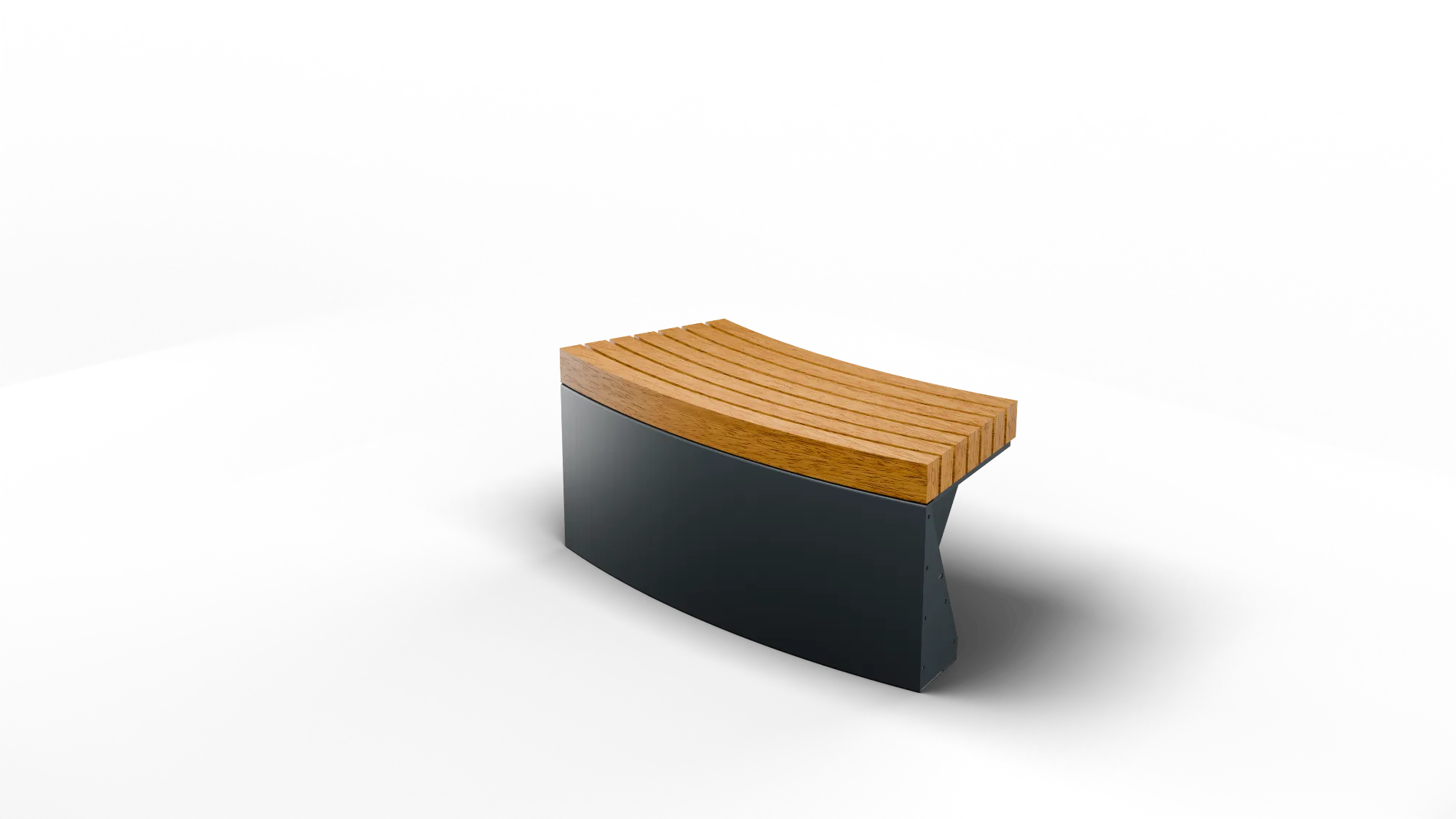

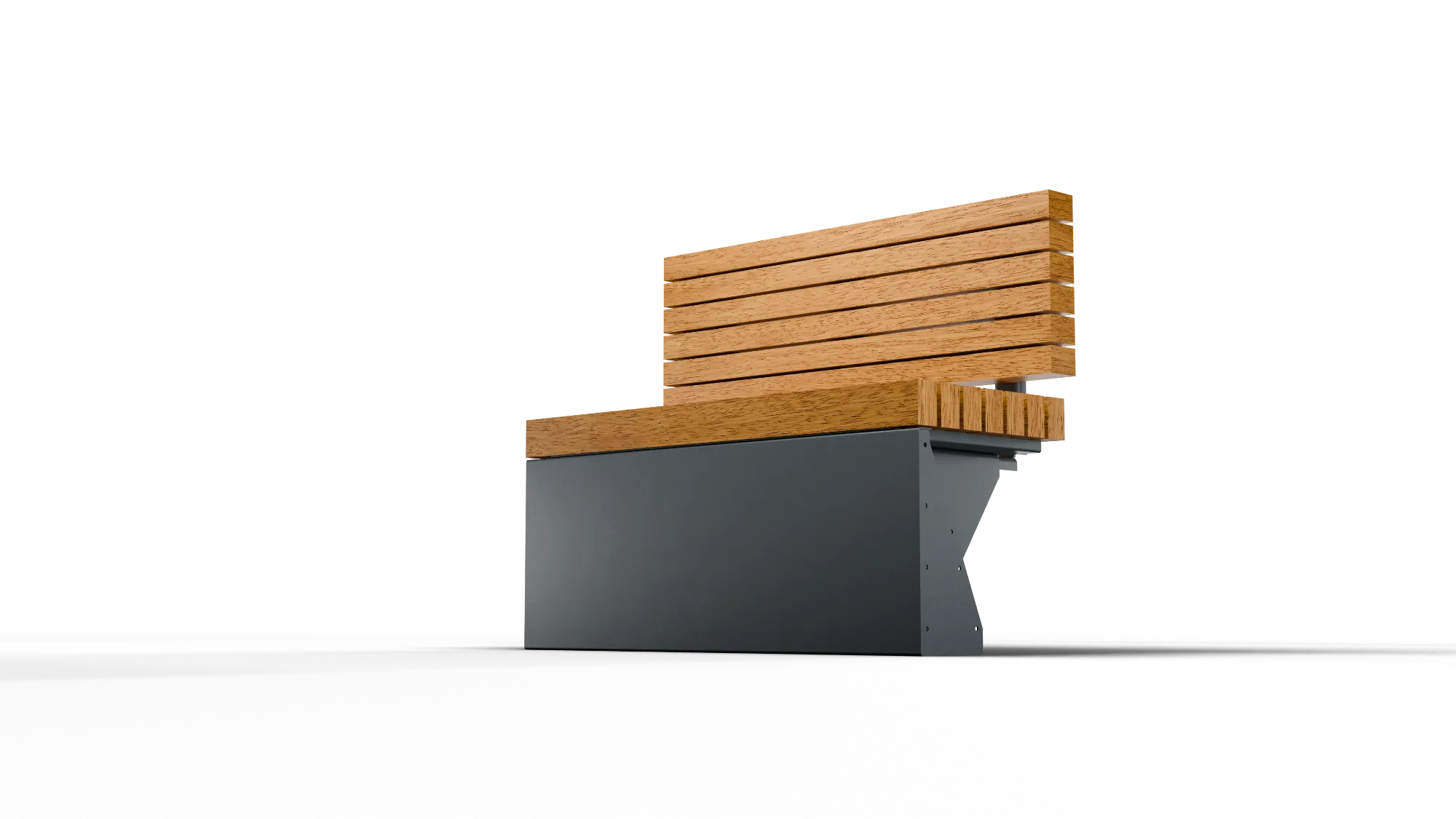

Configure domino bench

Finish

Small

Medium

Large

A system, not a product — engineered modular units with seamless concealed fixings deliver planter-height borders across complex layouts, sloping terrain, and high-traffic landscapes from a single specification.

HiGrade reads as one continuous folded steel edge. A 40mm top fold strengthens the line and softens the silhouette; concealed internal bolt fixings remove all visible joinery. The result is a clean, architectural border that holds its form across straight runs, tight 300mm radii, and complex corner geometries.

Edging heights of 300 to 1200mm. 3mm steel construction with 100mm – 300mm footplate. Units supplied in 1200mm modules with straight, internal/external corner, and internal/external curve options. Class 1A fire-rated. 100% recyclable steel. Designed and manufactured in the UK to BS EN 9001.

Details

Folded 40mm top edge increases rigidity, improves safety, and refines the visual line
Concealed internal bolt connections — no visible fixings disrupt the run
Five unit types combine for any layout
CorTen, RAL 7016, or custom powder-coated finishes

Height options (300mm to 1200mm); 3mm steel; 100mm – 300mm footplate; gussets every 600mm
Tightest factory radius 300mm; modular curve units for repeating arcs
Class 1A fire resistance; 100% recyclable steel
Fixed into concrete via M10 anchor bolts; supplied flat-packed with M8 fixings

Product Gallery

No items found.

Variants

HiGrade Circular End Cap

The circular end cap closes a HiGrade run with a smooth curved profile, picking up the same 40mm top fold and concealed fixings as the straight unit. The result is a deliberate, sculptural terminus that reads as part of the design rather than a cut edge.

Available in standard form and as Circular End Cap LD with integrated lighting. Compatible heights and finishes match the wider HiGrade family. CorTen, RAL 7016, or custom powder-coated finishes. Designed and manufactured in the UK to BS EN 9001.

HiGrade Circular End Cap

Curved sculptural terminus to HiGrade runs
Carries the 40mm folded top edge through the curve
LD version available with integrated illumination
Matches standard HiGrade units in finish and detail

Available in standard and Light Detail (LD) variants
Compatible with all HiGrade heights and finishes
Concealed internal bolt fixings to adjacent unit
Class 1A fire-rated; 100% recyclable steel

HiGrade Tall (Straight Tall)

HiGrade Tall extends the modular straight unit beyond the standard height range while preserving the family's defining details: the 40mm folded top edge, concealed internal bolt fixings, and clean folded steel face. The result is a coherent extension of the system into taller raised-planter territory.

Tall variant available alongside standard HiGrade units in CorTen, RAL 7016, or custom powder-coated finishes. 3mm steel construction with reinforced footplate. Concealed internal bolt fixings. Designed and manufactured in the UK to BS EN 9001.

HiGrade Tall (Straight Tall)

Extended height beyond the standard 300–600mm range
Same 40mm folded top edge as the rest of the family
Concealed internal bolt fixings — clean uninterrupted face
CorTen, RAL 7016, or custom powder-coated finishes

3mm steel construction with reinforced footplate
Compatible with standard HiGrade corner and curve units where heights align
Class 1A fire-rated; 100% recyclable steel
Fixed into concrete via M10 anchor bolts

HiGrade Light Detail (LD)

HiGrade Light Detail integrates concealed LED illumination into the 40mm folded top edge of the standard unit. By day the planter reads as the familiar clean steel border; by night, a soft wash of light grazes the edge, defining pathways and planted areas without visible fittings.

Available across the HiGrade unit range (Straight, Corner, Curve, and circular end caps). Compatible heights and finishes match the standard HiGrade family. Specification of LED type, colour temperature, and IP rating to be confirmed at order stage based on project requirements.

HiGrade Light Detail (LD)

Concealed LED lighting integrated into the folded top edge
Soft downward light wash defines planted edges and paths after dark
No visible fittings — illumination reads as part of the edge itself
Matches the visual language of standard HiGrade units exactly

Available in Straight, Curve, and circular end cap unit types
Heights, finishes, and fixings consistent with standard HiGrade
External LED driver requirement to be confirmed per project
Made in the UK; coordinated with the wider Kinley LD range

HiGrade External Curve

A factory-formed convex curve in folded 3mm steel with the signature 40mm top fold continuing through the arc. The geometry is set in production for consistent radii and a smooth finish across every external curve in the scheme.

Available in all seven HiGrade heights (300mm to 1200mm) and three finishes (CorTen, RAL 7016, custom). Minimum factory radius 300mm. 3mm steel construction with 100mm footplate. Designed and manufactured in the UK to BS EN 9001.

HiGrade External Curve

Pre-formed convex curve geometry — 300mm minimum factory radius
Continuous 40mm folded top edge through the arc
Matches straight, corner, and internal curve units in detail
CorTen, RAL 7016, or custom powder-coated finishes

Seven height options matching the family range
3mm steel; 100mm footplate; 600mm module length
Concealed internal bolt fixings to adjacent units
Class 1A fire-rated; 100% recyclable steel

HiGrade Internal Curve

A factory-formed concave curve in folded 3mm steel, carrying the same 40mm top fold and clean finish as the rest of the HiGrade family. Smooth radius geometry is set in production, removing the variability and finish issues of cold-bent edging on site.

Available in all seven HiGrade heights (300mm to 1200mm) and three finishes (CorTen, RAL 7016, custom). Minimum factory radius 300mm. 3mm steel construction with 100mm – 300mm footplate. Designed and manufactured in the UK to BS EN 9001.

HiGrade Internal Curve

Pre-formed concave curve geometry — 300mm minimum factory radius
Continuous 40mm top fold detail through the curve
Matches straight and corner units in finish and proportion
CorTen, RAL 7016, or custom powder-coated finishes

Seven height options across the family range
3mm steel construction; 100mm footplate
Concealed internal bolt connections to adjacent units
Class 1A fire-rated; 100% recyclable steel

HiGrade External Corner

A factory-fabricated external corner carrying the same 40mm folded top edge, 3mm folded steel construction, and concealed fixings as the straight unit. The convex angle is set in production for consistent geometry across every corner in the scheme.

Available across all seven HiGrade heights (300mm to 1200mm) and in CorTen, RAL 7016, or custom powder-coated finishes. Concealed internal bolts connect to adjacent straight or curve units. Designed and manufactured in the UK to BS EN 9001.

HiGrade External Corner

Factory-formed convex (external) corner geometry
Continuous 40mm top fold detail wrapping the corner
Identical finish options to straight and curve units
CorTen patina, RAL 7016, or custom powder coat

Seven height options matching the family range
3mm steel construction; 100mm footplate
Concealed internal bolt connections — no visible fixings
Class 1A fire-rated; 100% recyclable steel

HiGrade Internal Corner

A factory-fabricated internal corner with the same folded 40mm top edge and concealed fixings as the straight unit. The corner geometry is set in production, removing all on-site jointing variability and delivering a perfectly aligned concave angle every time.

Available across the full HiGrade height range (300mm to 1200mm) and finishes (CorTen, RAL 7016, custom). 3mm steel construction. Concealed internal bolt connections to adjacent straight or curve units. Designed and manufactured in the UK to BS EN 9001.

HiGrade Internal Corner

Factory-formed concave (internal) corner geometry
Identical 40mm top fold and finish detailing as straight unit
Seamless visual continuation across the run
CorTen, RAL 7016, or custom powder-coated finishes

Seven height options matching the straight unit
3mm steel construction with 100mm – 300mm footplate
Bolts to adjacent units via concealed internal fixings
Class 1A fire-rated; 100% recyclable steel

HiGrade Straight

A single 1200mm panel of folded 3mm steel with the signature 40mm top fold creating a refined line and concealed internal bolt detail at each end. Combine units end to end with no visible jointing.

Available in various heights in CorTen, RAL 7016, or custom powder coat. 3mm thickness, 100mm, 300mm footplate, 600mm length. Unit weights range from 6.48kg (300mm) to 12.96kg (600mm).

HiGrade Straight

600mm modular length combines to runs of any total length
40mm folded top edge for rigidity and refined visual line
Concealed internal bolt connections between units
CorTen, RAL 7016, or custom powder-coated finish options

Height options from 300mm to 1200mm; 3mm steel thickness
100mm – 300mm footplate for stable bedding into concrete sub-base
M10 concrete anchor bolts; M8 internal fixings supplied
Class 1A fire-rated; 100% recyclable steel
